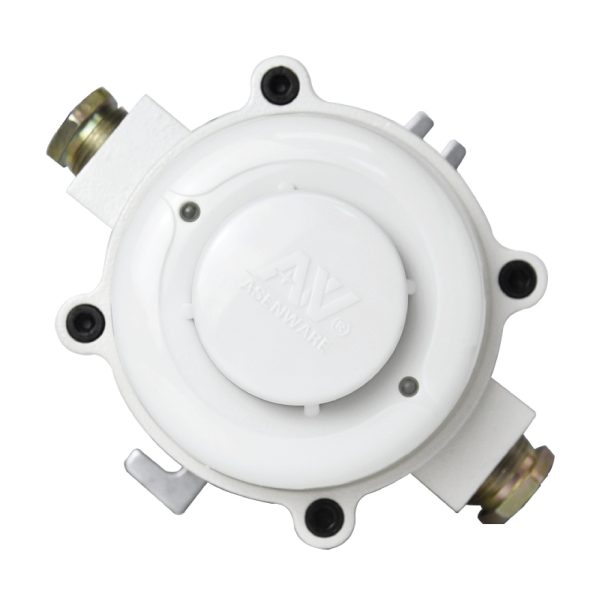

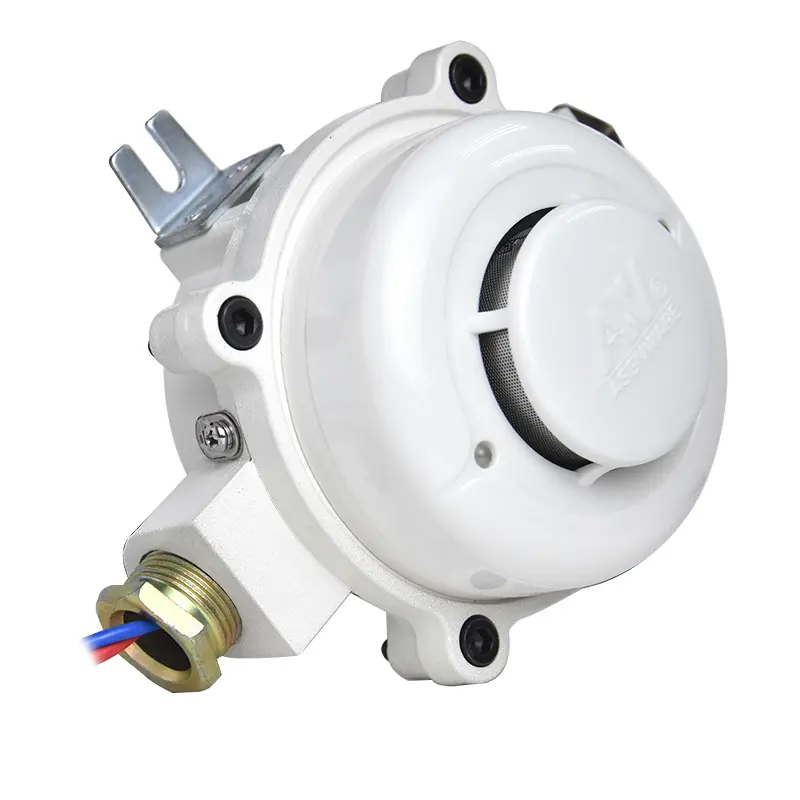

ASENWARE Explosion-Proof Conventional smoke Detector, AW-CSD381EX, is suitable for hazardous locations which include explosive gas environments. AW-CSD381EX uses new scattering technology and unique maze design. It will trigger and latch alarm signal while smog concentrations exceed the set threshold level. This detector can be used compatible with the conventional fire alarm panels.
Home > Products > Fire Detection and Alarm Systems > Smoke Detectors > ASENWARE Explosion-Proof Conventional smoke Detector
| Main Voltage | DC24V± 3V (no polarity) |
| Operating current | Monitor : 150µA
Alarm : ≤30mA |
| Alarm Relay Output | Normally Open and Closed |
| Smoke Alarm Sensitivity | 0.10dB/m~0.27 dB/m |
| Ex-Atex Protection Level | Gb/ExibDtDA21IP65T85 |
| Materials and colors | CAST IRON， ABS, White |
| Mating Host | AW-CFP2166 fire alarm control panel |
| Outlet Interface | G20 |
| Environmental | Temperature range: -10 to 50°C Humidity: 5 to 95% RH, non-condensing |
| Size | 150mm* 150mm* 110mm |
| Weight | about 1.2kg |
| Bus quiescent current | ≤400μ A |
| Bus quiescent current Outlet thread | 2-G3/4 |
| Alarm confirmation light | red, flashing during inspection, always on when alarm |
| Atmospheric pressure | 80kPa～110kPa |
