The ASEANWARE AW-D119 is an intelligent addressable Input/Output (I/O) module designed for use with ASEANWARE addressable fire alarm control panels. It provides both monitoring and control functions, allowing the fire alarm system to interface with external equipment such as fire alarm bells, strobe lights, smoke dampers, fire dampers, fans, and other fire protection devices.

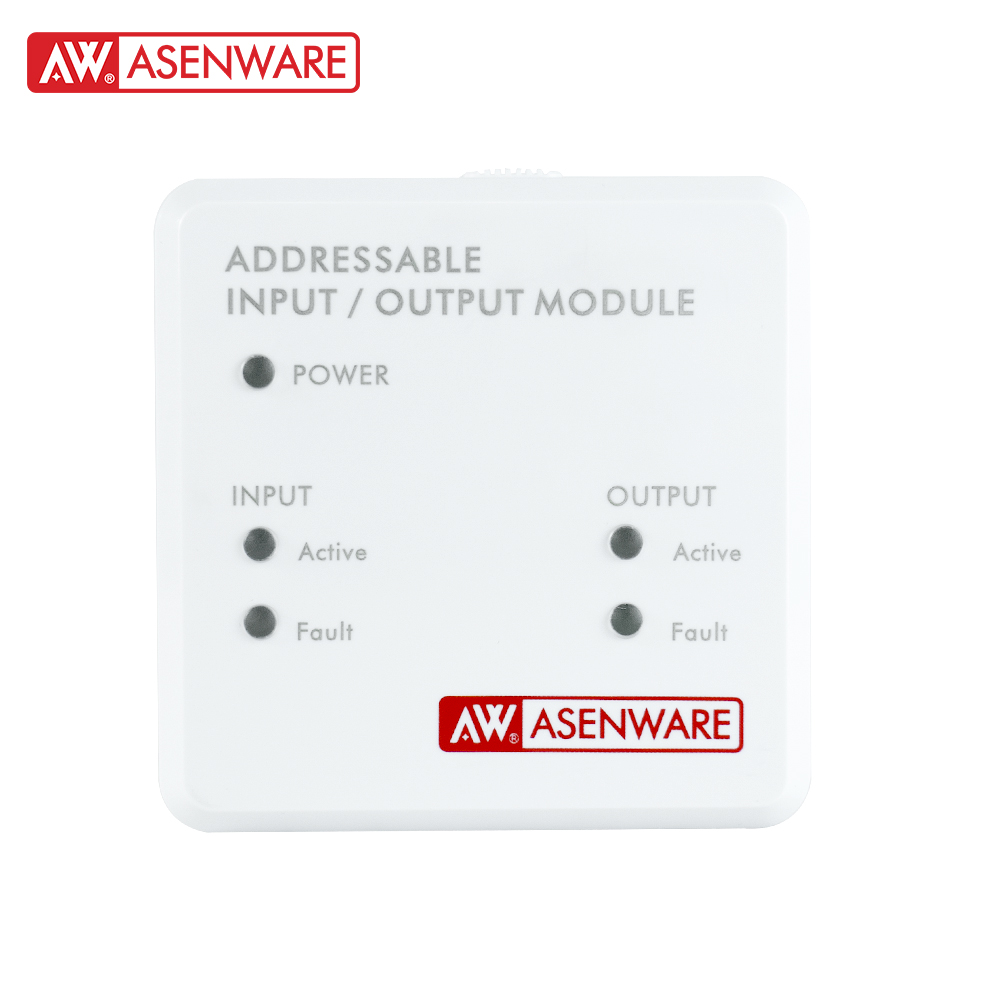

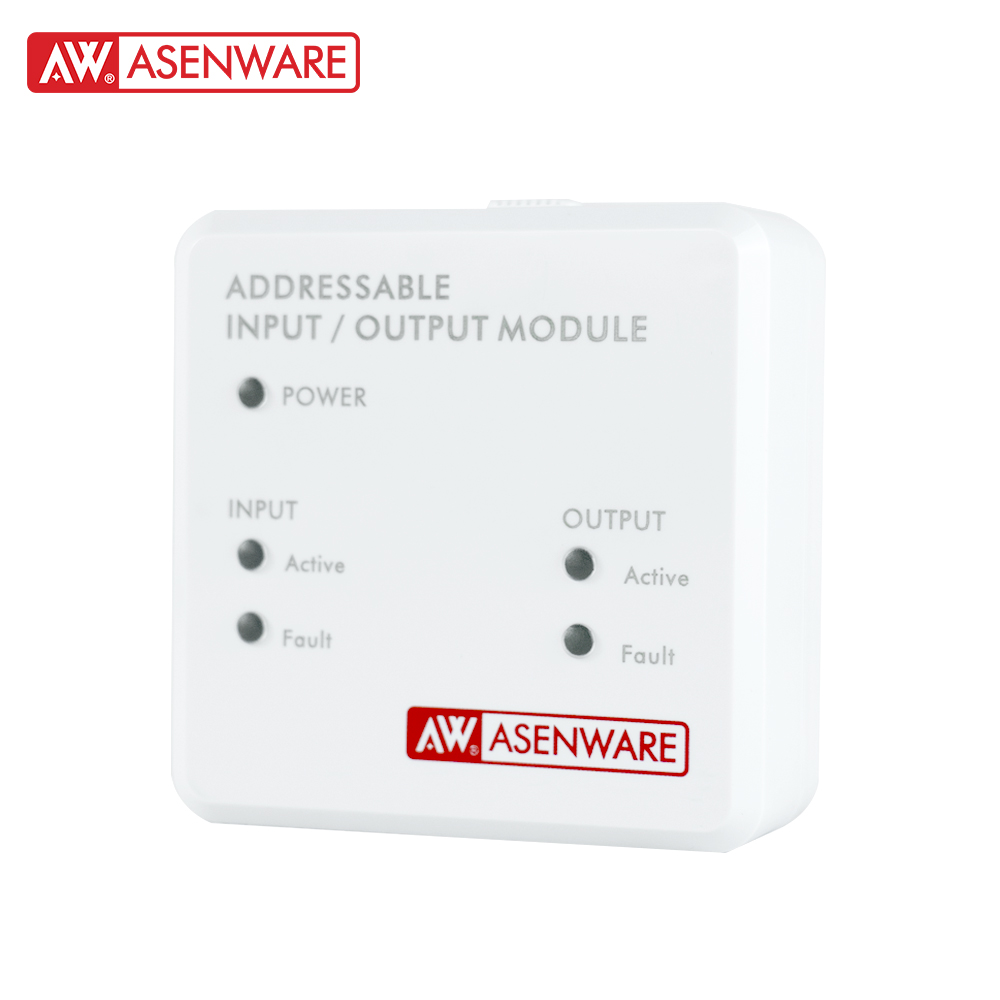

ASEANWARE Addressable Input/Output Module (AW-D119)
Typical Specifications
| Item | Description |
|---|---|
| Model | AW-D119 |
| Device Type | Addressable Input/Output Module |
| Standard | EN 54-18 |
| Operating Voltage | 20 – 28 VDC |
| Quiescent Current | ≤ 15 mA |
| Activated Current | ≤ 40 mA |
| Relay Contact Rating | 0.2 A @ 30 VDC (Max) |
| Voltage Output | 0.2 A @ 24 VDC (Max) |
| Installation | Surface Mount |
| Indicator | LED Status Indicator |
| Application | Indoor Use Only |
| Compatible Panels | AW-FP100 / AW-FP200 / AW-FP128 Series |
