The ASEANWARE AW-D135A is an addressable manual call point (MCP) designed to use with ASEANWARE intelligent two-wire addressable fire alarm systems. When a fire is confirmed, occupants can manually activate the call point to immediately send an alarm signal to the fire alarm control panel, which displays the device address and alarm status for quick identification of the emergency location.

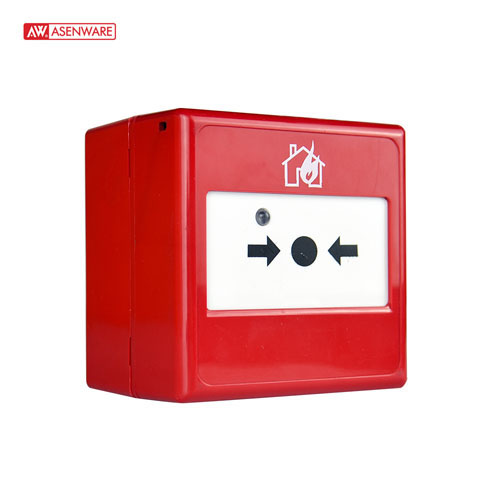

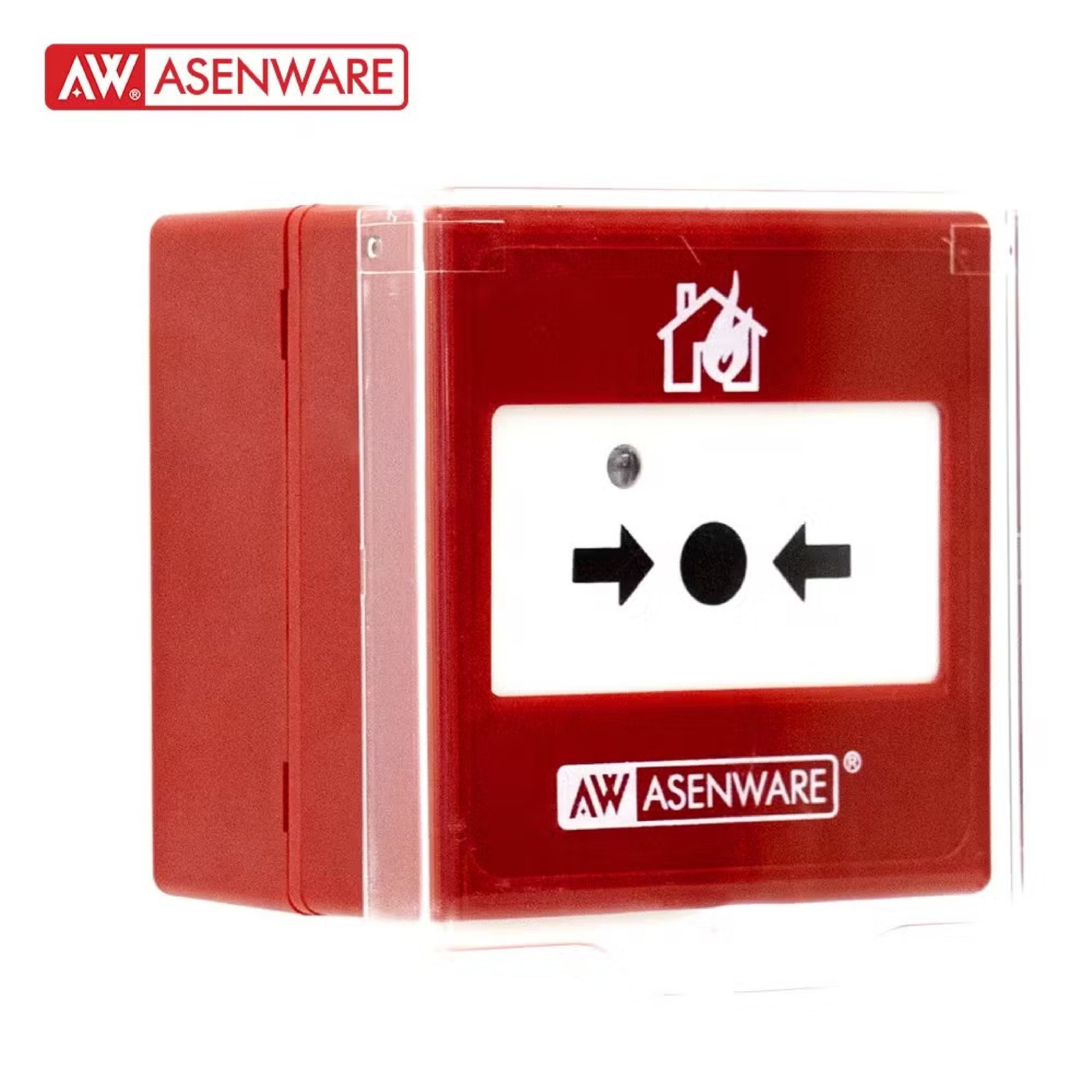

ASEANWARE Manual Call Point (AW-D135A)
Typical Specifications
| Item | Description |
|---|---|
| Model | AW-D135A |
| Detector Type | Addressable Manual Call Point |
| Operating Voltage | 24VDC Loop Powered |
| Standby Current | ≤ 2mA |
| Alarm Current | ≤ 15mA |
| Address Range | 1 – 250 |
| Protection Rating | IP30 |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | ≤95% RH (Non-condensing) |
| Material | ABS Plastic |
| Color | Red |
| Mounting | Surface or Semi-Flush |
| Dimensions | 99 x 91.5 x 66.3 mm |
| Weight | Approximately 95 g |
| Compatible Panel | AW-FP100 Addressable Fire Alarm Control Panel |
