The DEMCO D-102 Alarm Bell is a conventional fire alarm notification device designed to provide a loud and reliable audible warning signal during fire alarm conditions. It is widely used in commercial, industrial, institutional, and residential fire alarm systems and is designed to comply with EN54-3:2001 requirements.

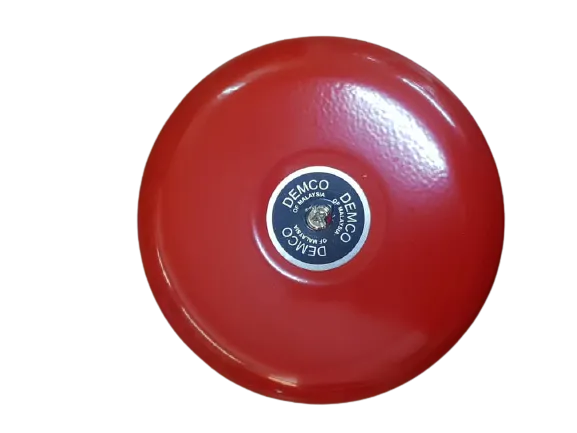

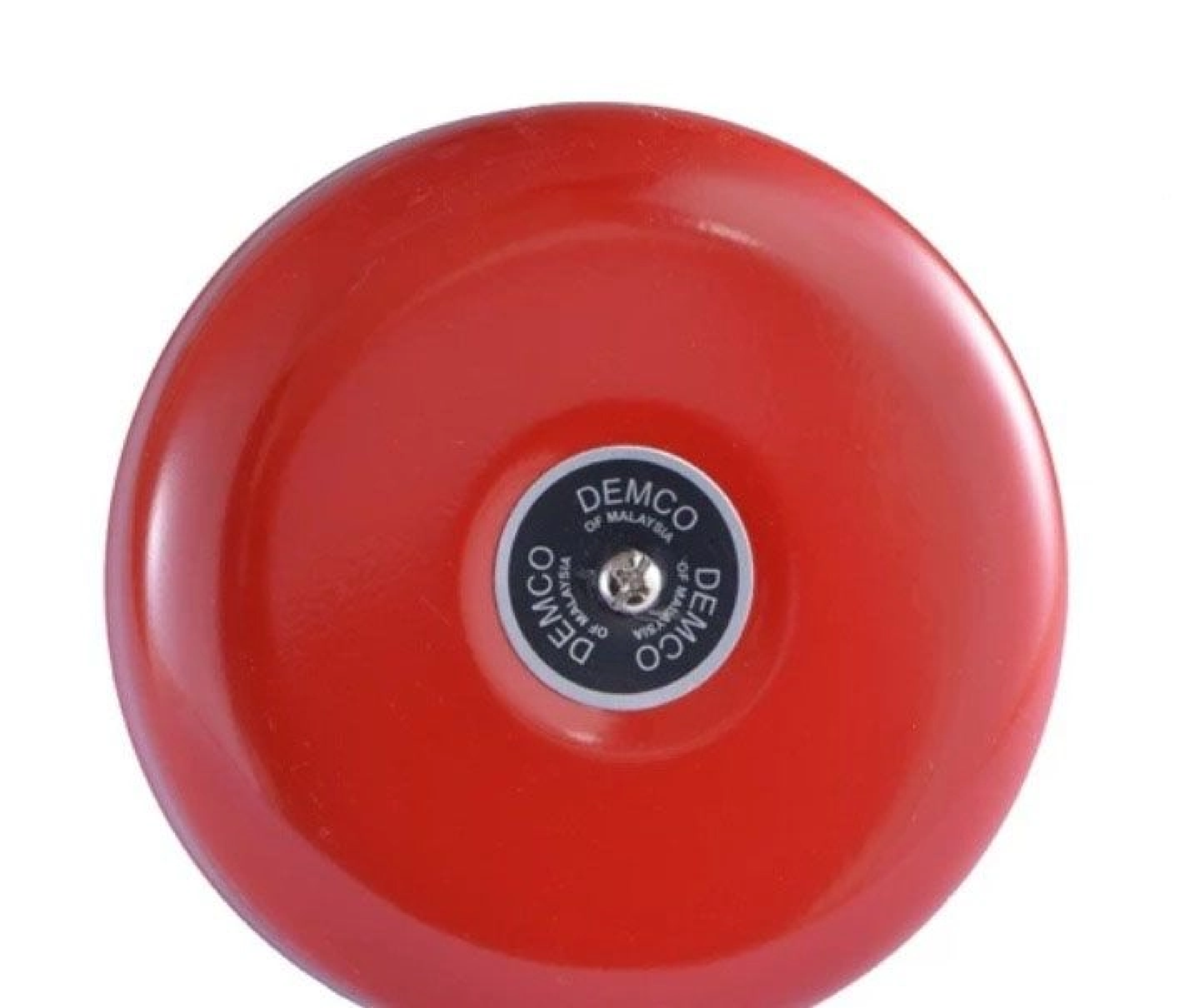

DEMCO Alarm Bell (D-102)
Typical Specifications
| Item | Specification |
|---|---|
| Model | D-102 |
| Device Type | Electromechanical Alarm Bell |
| Standard | EN54-3:2001 |
| Bell Sizes Available | 100mm (4″), 150mm (6″), 200mm (8″) |
| Operating Voltage | 12VDC, 24VDC, 110VAC, 240VAC |
| Standard Current | 0 mA |
| Operating Current | 50 mA @ 24VDC, 33 mA @ 240VAC |
| Sound Output | Up to 105 dB @ 1 m |
| Housing Material | Steel Bell with ABS Base |
| Colour | Signal Red |
| Mounting | Surface or Semi-Concealed |
| Application | Indoor Fire Alarm Systems |
| Operating Temperature | -10°C to +55°C |
