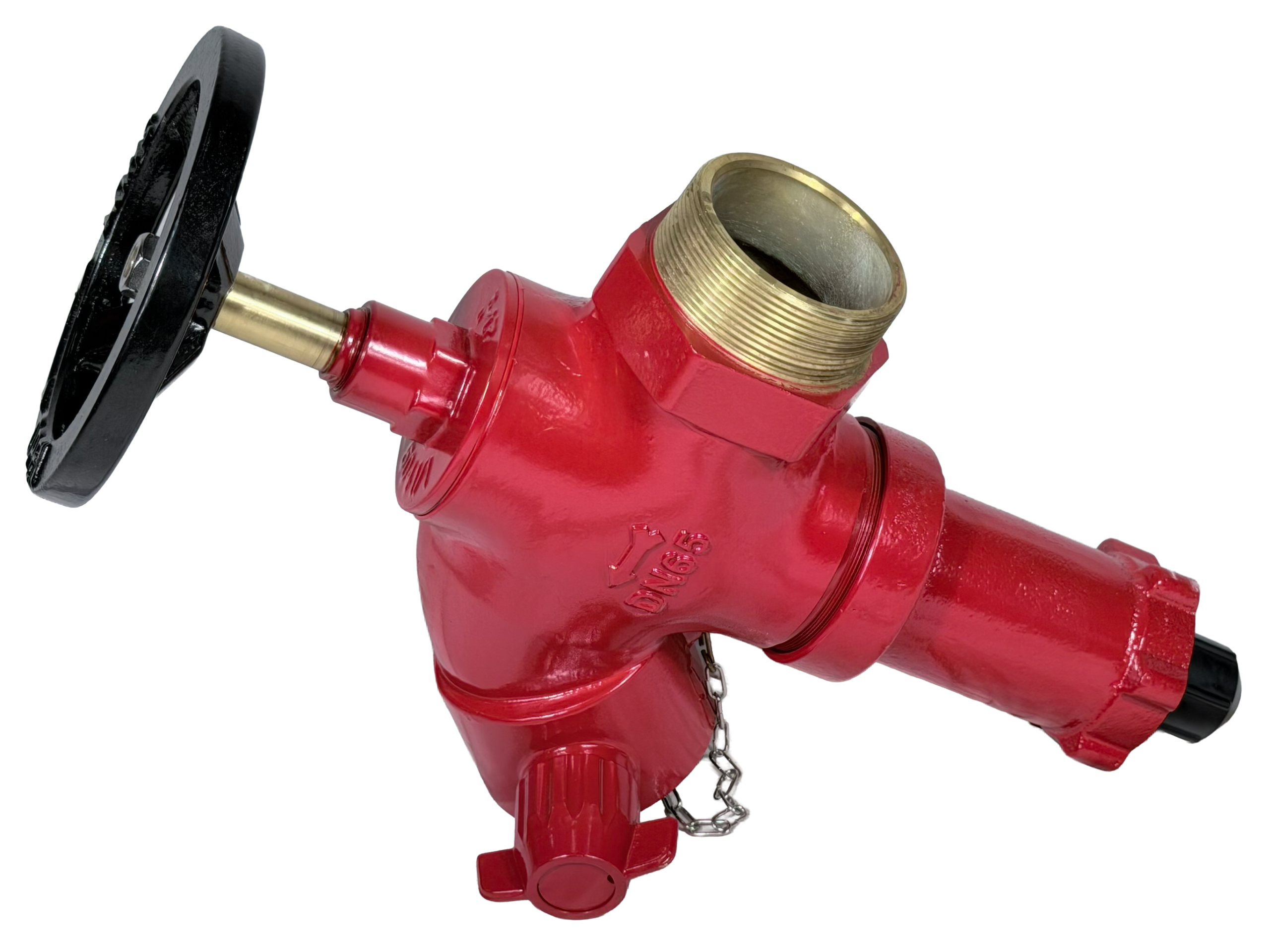

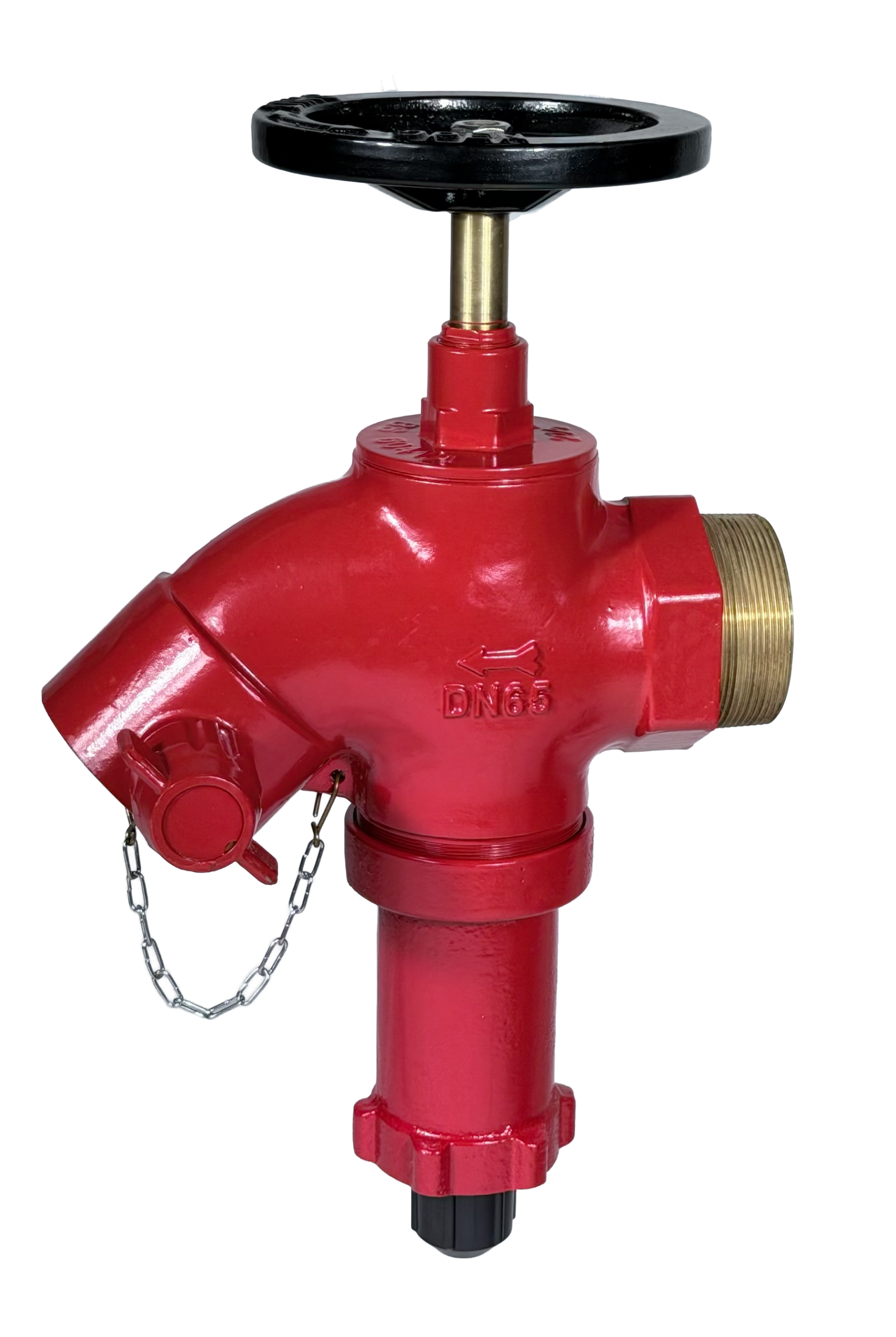

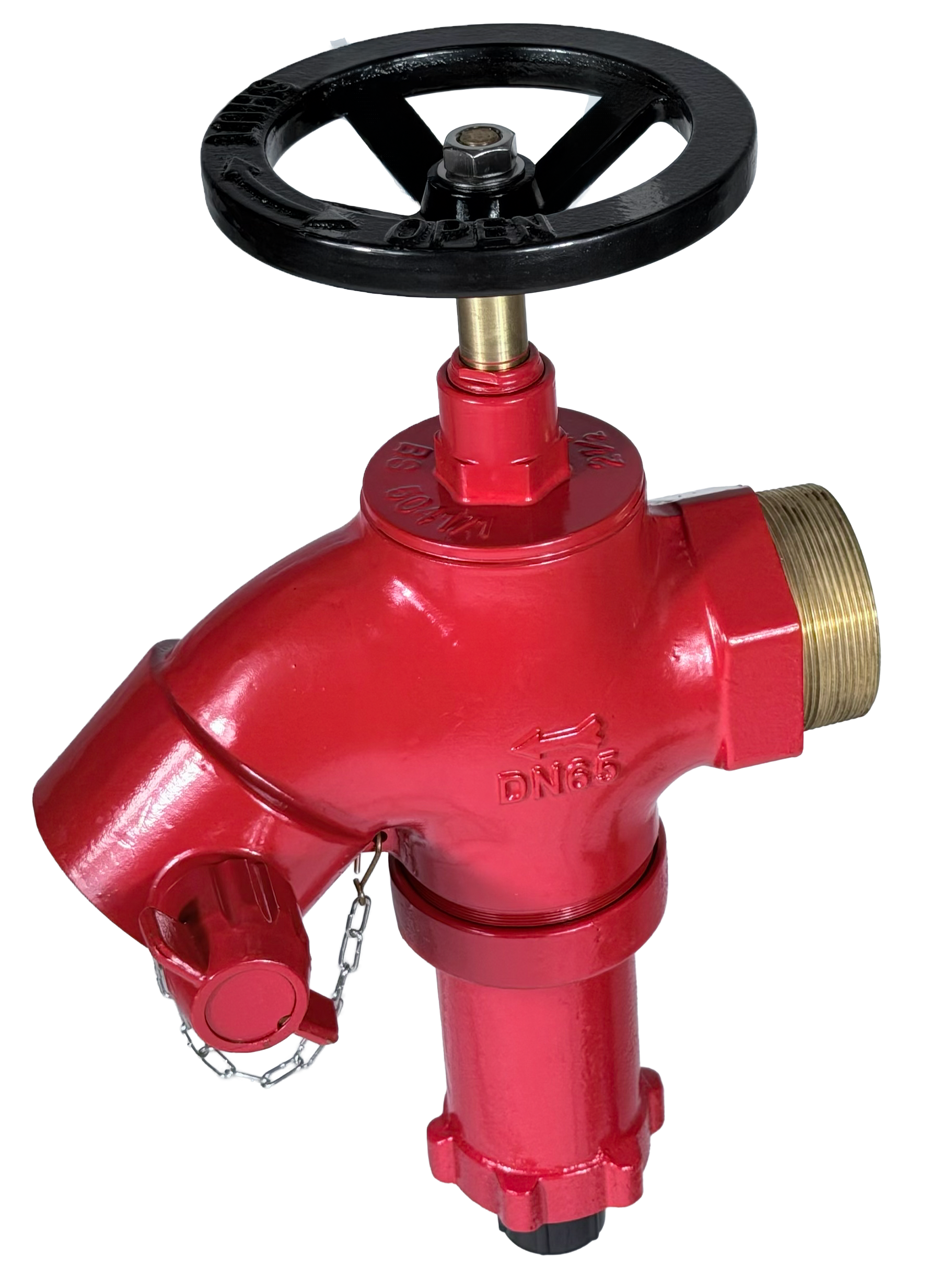

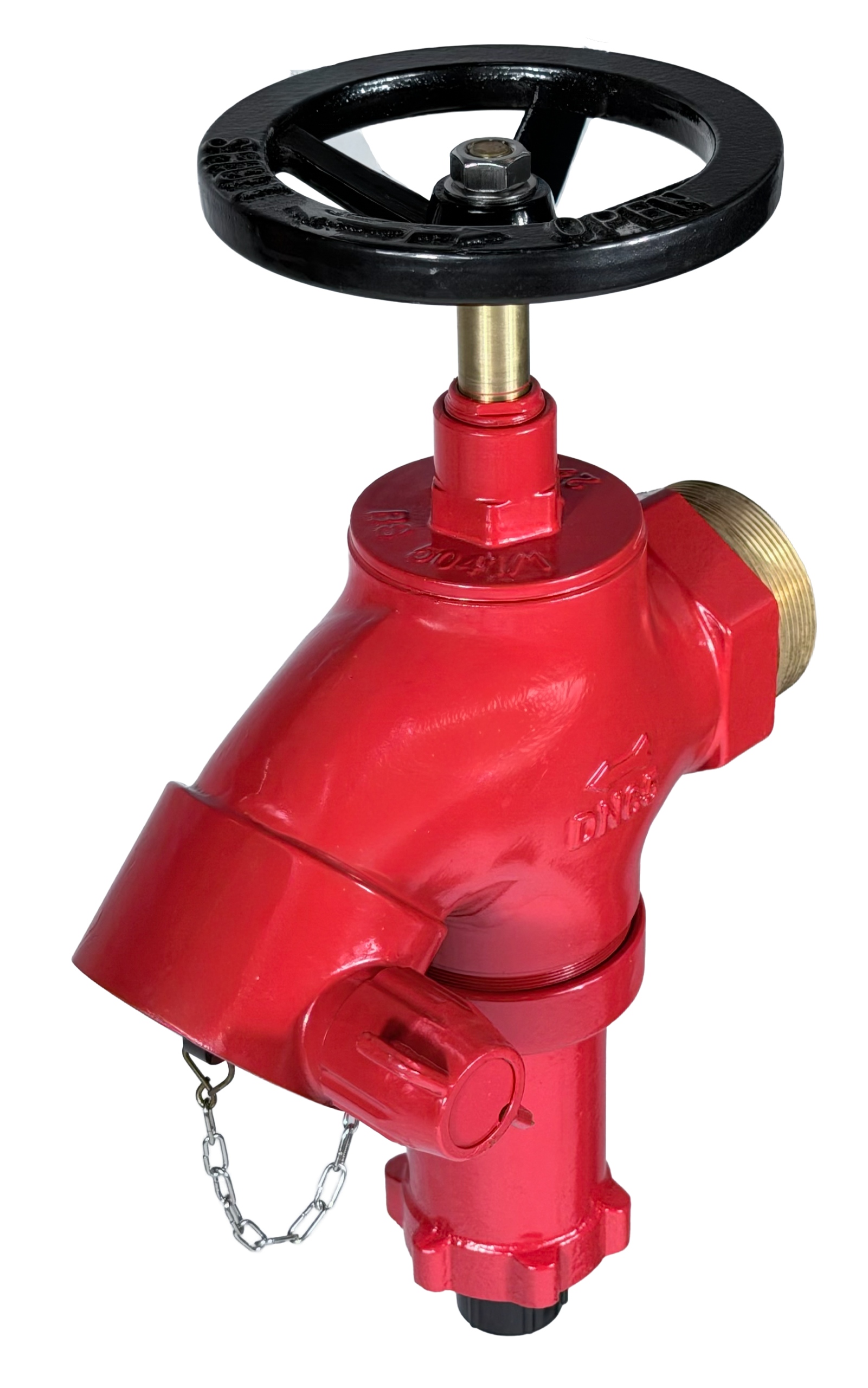

An E-Type Pressure Regulating Valve (PRV) is a valve used in fire hydrant and wet riser systems to control and maintain a safe outlet pressure at the landing valve or hydrant outlet.
Its main purpose is to reduce high water pressure in firefighting pipelines so that firefighters can operate hoses safely and effectively.
| Part No. | WRU-EPRV |
|---|---|
| Type | Screw Type (Thread) |
| Size | Ø65mm (2 ½”) |
| Test Pressure | 30 bar |
| Max. Inlet Pressure | 20 bar |
| Factory Pre-Set Pressure | 7 bar |
| Inlet Size | 65mm BSP Thread |
| Outlet Size | BSP 336 Female Instantaneous |
| Material | Copper Alloy (Body) Cast Iron (Handwheel) |
| Finishing | Red or Yellow |
| Features | Suitable to use for inlet pressure up to 20 bar Setting for reduced outlet static pressure from 5 to 8 bar When inlet pressure ranges from 7 to 20 bar, outlet pressure will remain constant |
