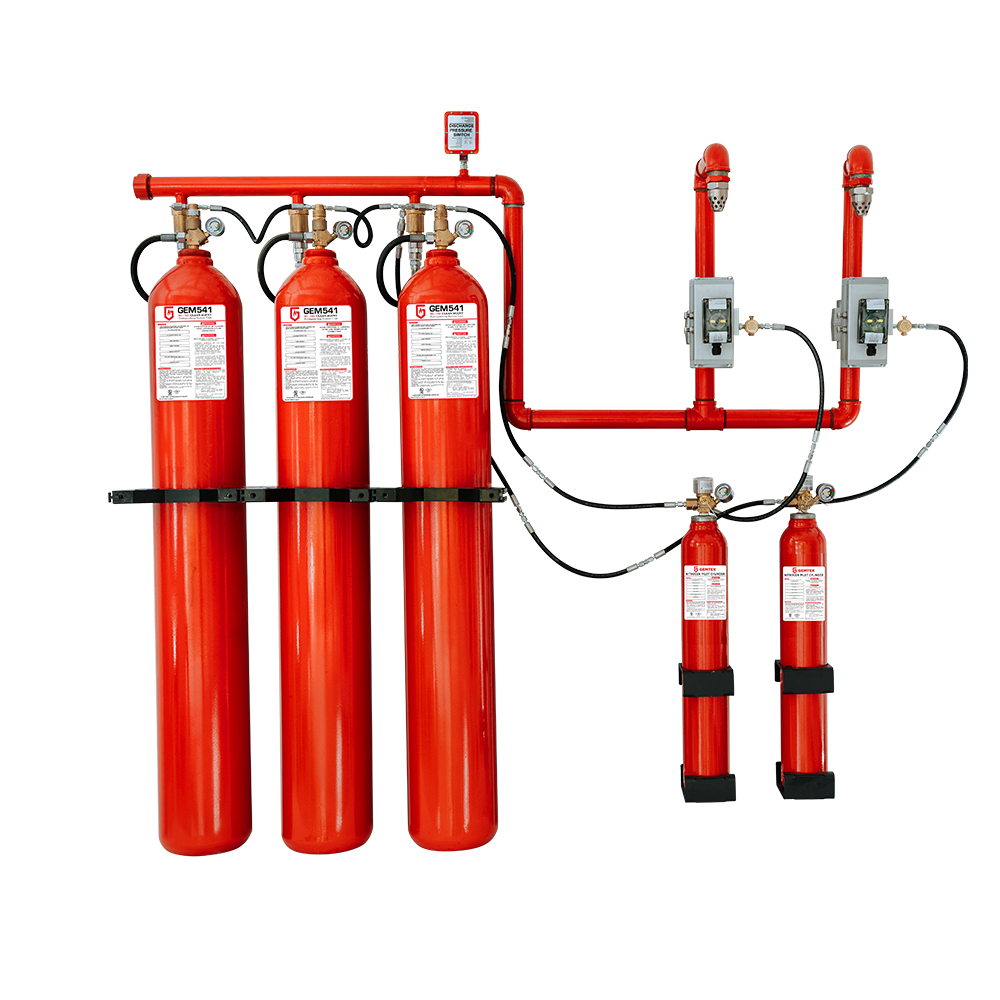

GEM541 is an inert clean agent composed of 52% Nitrogen (N₂), 40% Argon (Ar), and 8% Carbon Dioxide (CO₂). This carefully balanced blend gives it a slightly higher density than air, allowing it to distribute evenly throughout the protected enclosure during discharge. In non-turbulent conditions, the agent may tend to concentrate slightly toward the middle and lower sections of the space. GEM541 is especially effective in areas where fire risks exist near the floor or around sensitive equipment. Its high storage pressure also enables it to cover extended pipe runs, great heights, and complex layouts with excellent efficiency.
Agent Characteristics
| Property | GEM541 (IG-541) |
|---|---|
| Agent Type | Inert Gas |
| Composition | 52% N₂ / 40% Ar / 8% CO₂ |
| Ozone Depletion Potential | Zero |
| Global Warming Potential | Zero |
| Electrical Conductivity | Non-Conductive |
| Residue After Discharge | None |
| Atmospheric Lifetime | None |
| Occupied Space Use | Suitable |
| Fire Classes | A, B, C |
