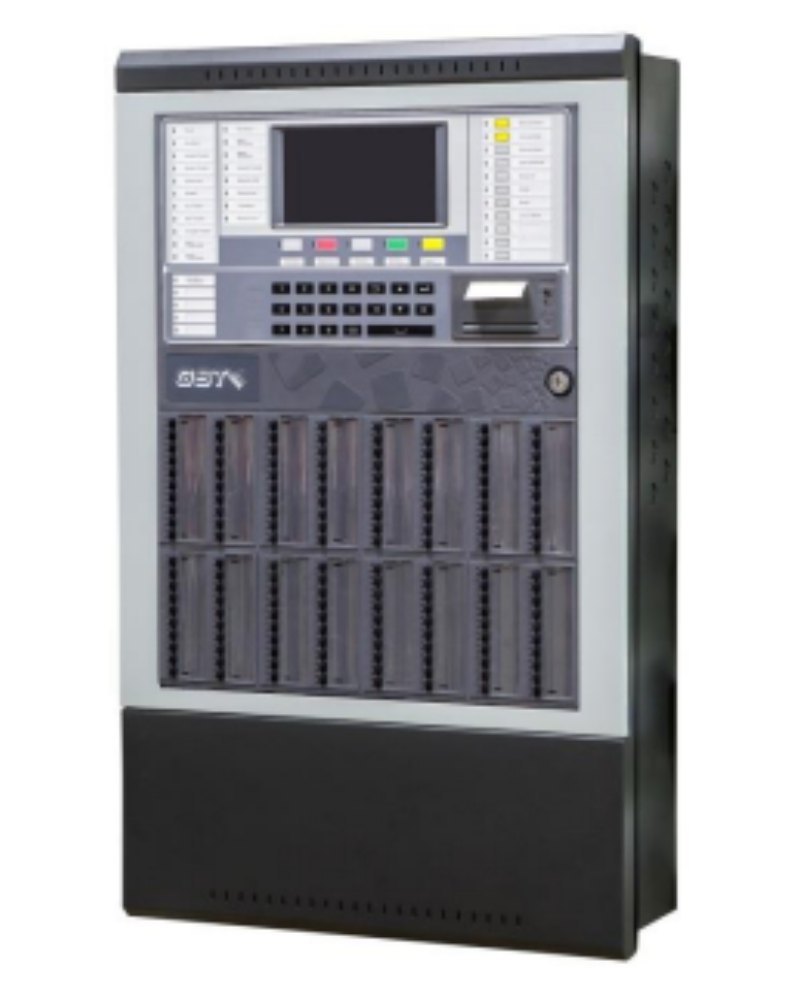

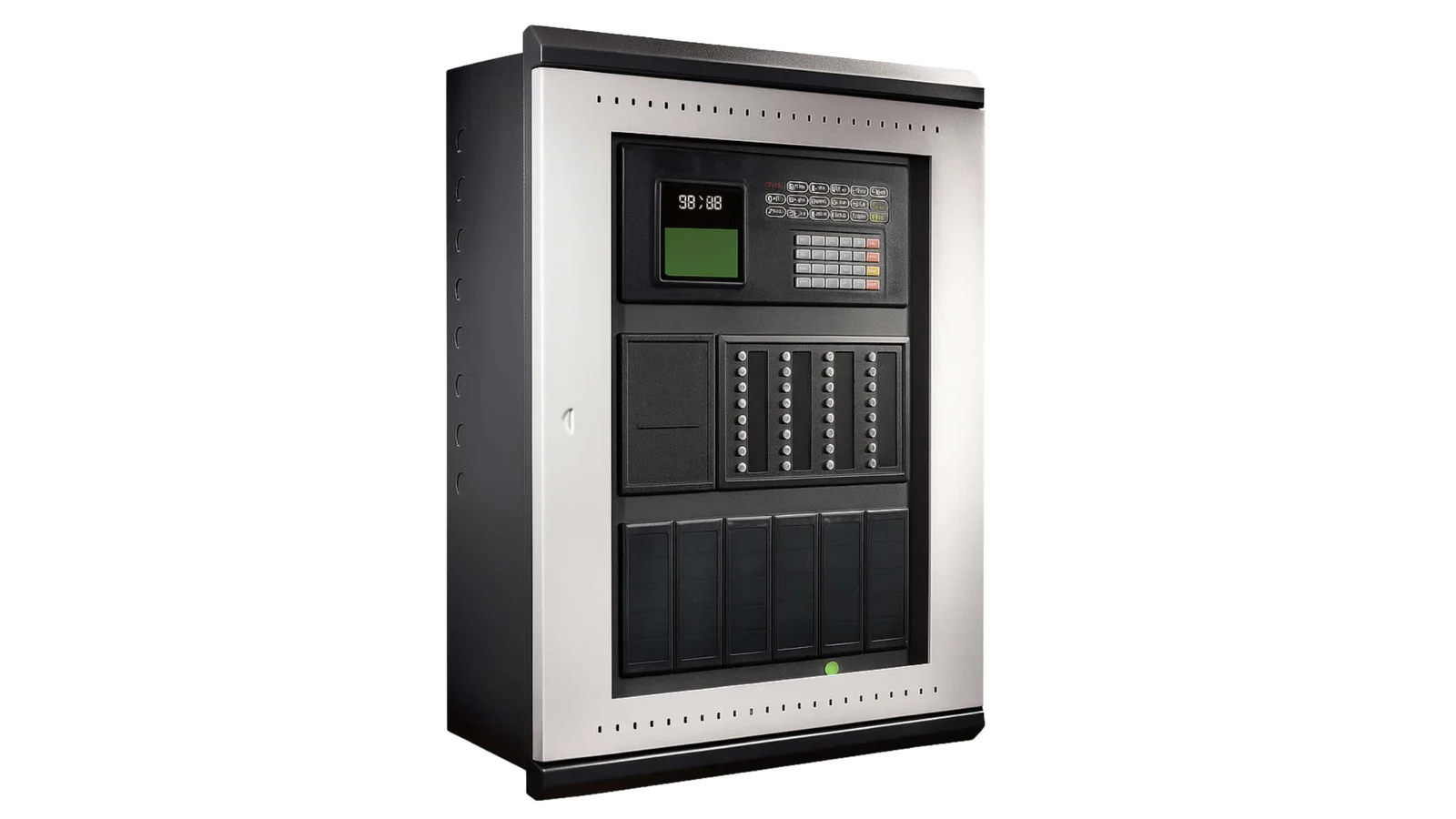

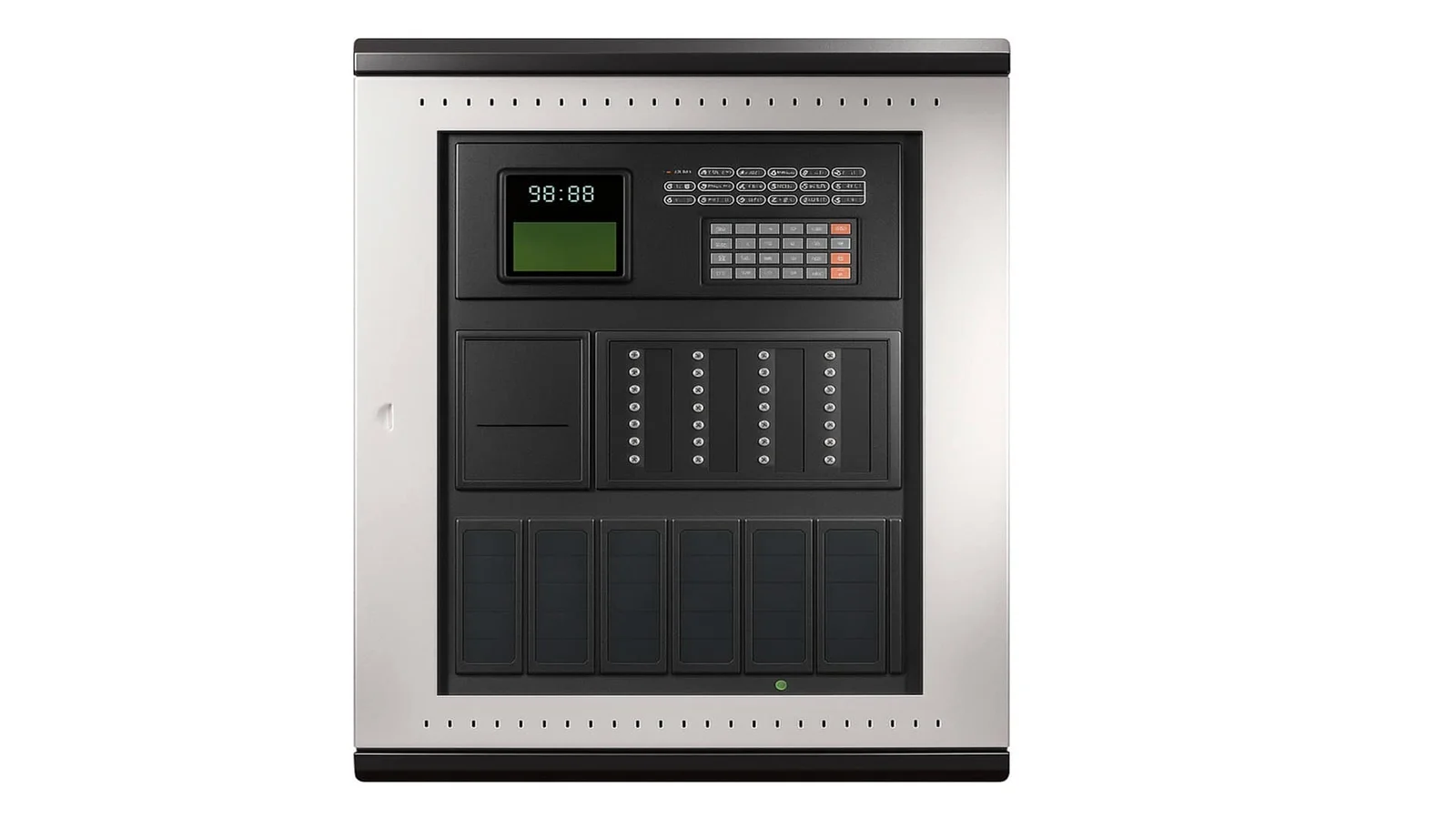

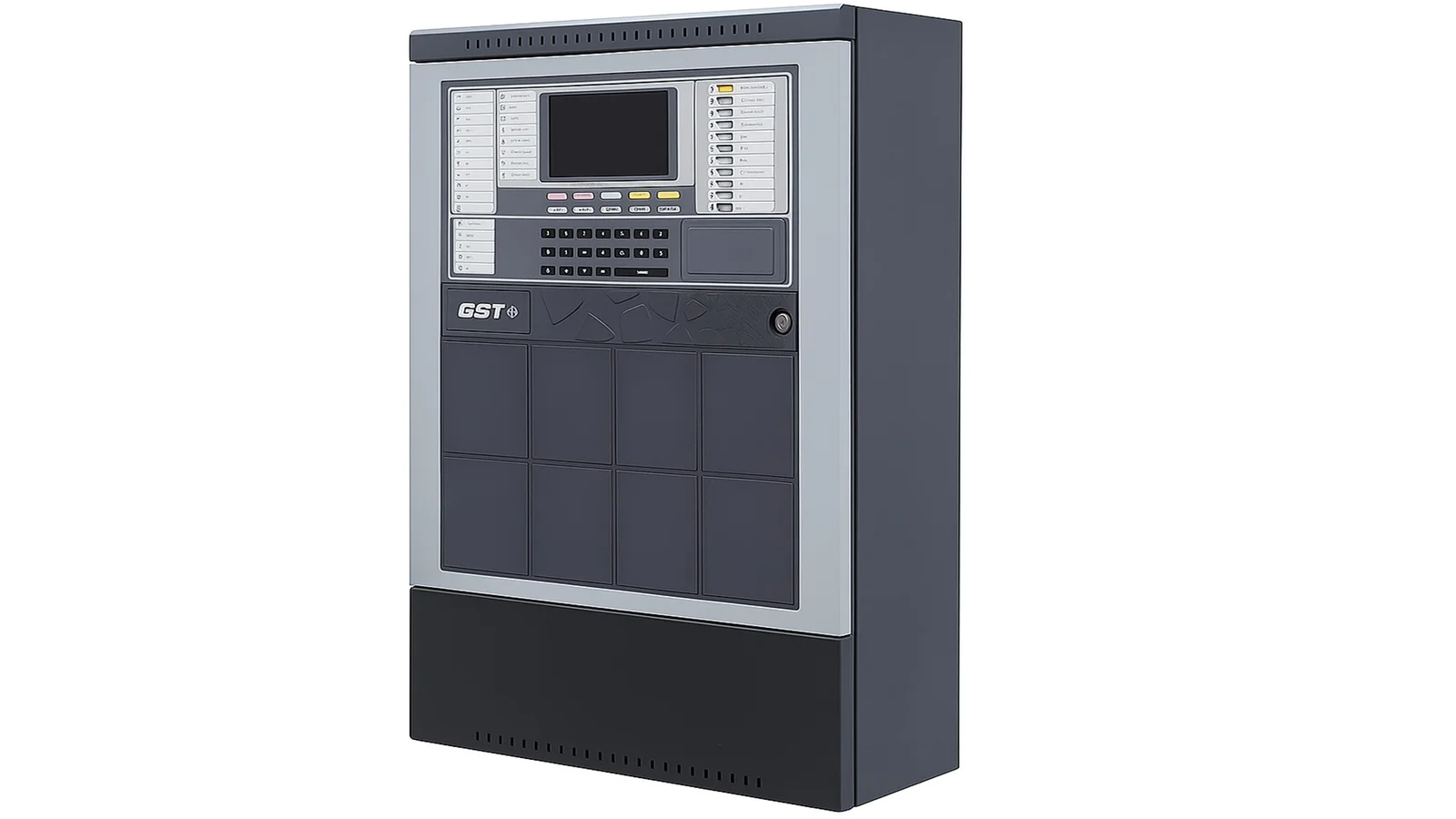

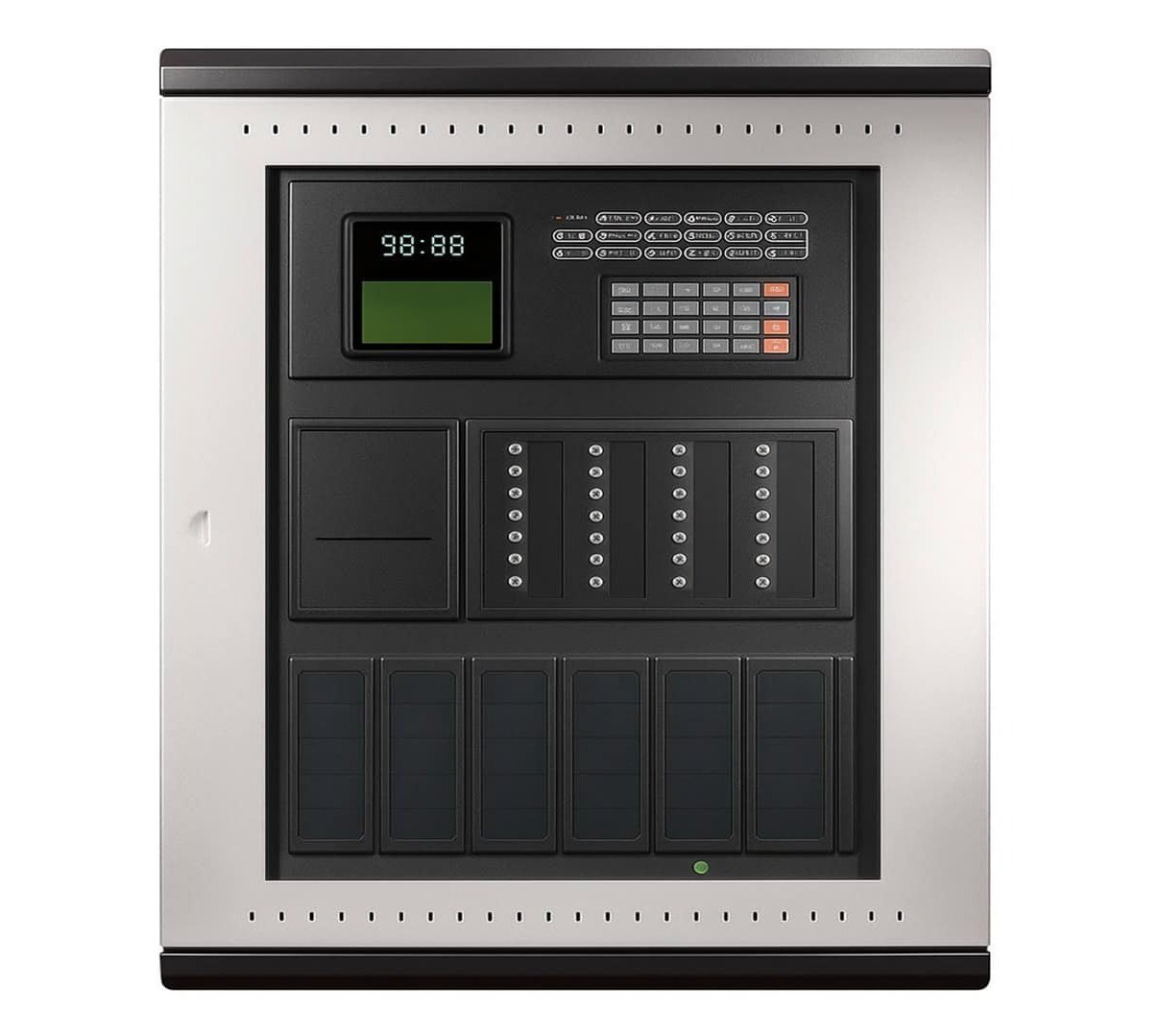

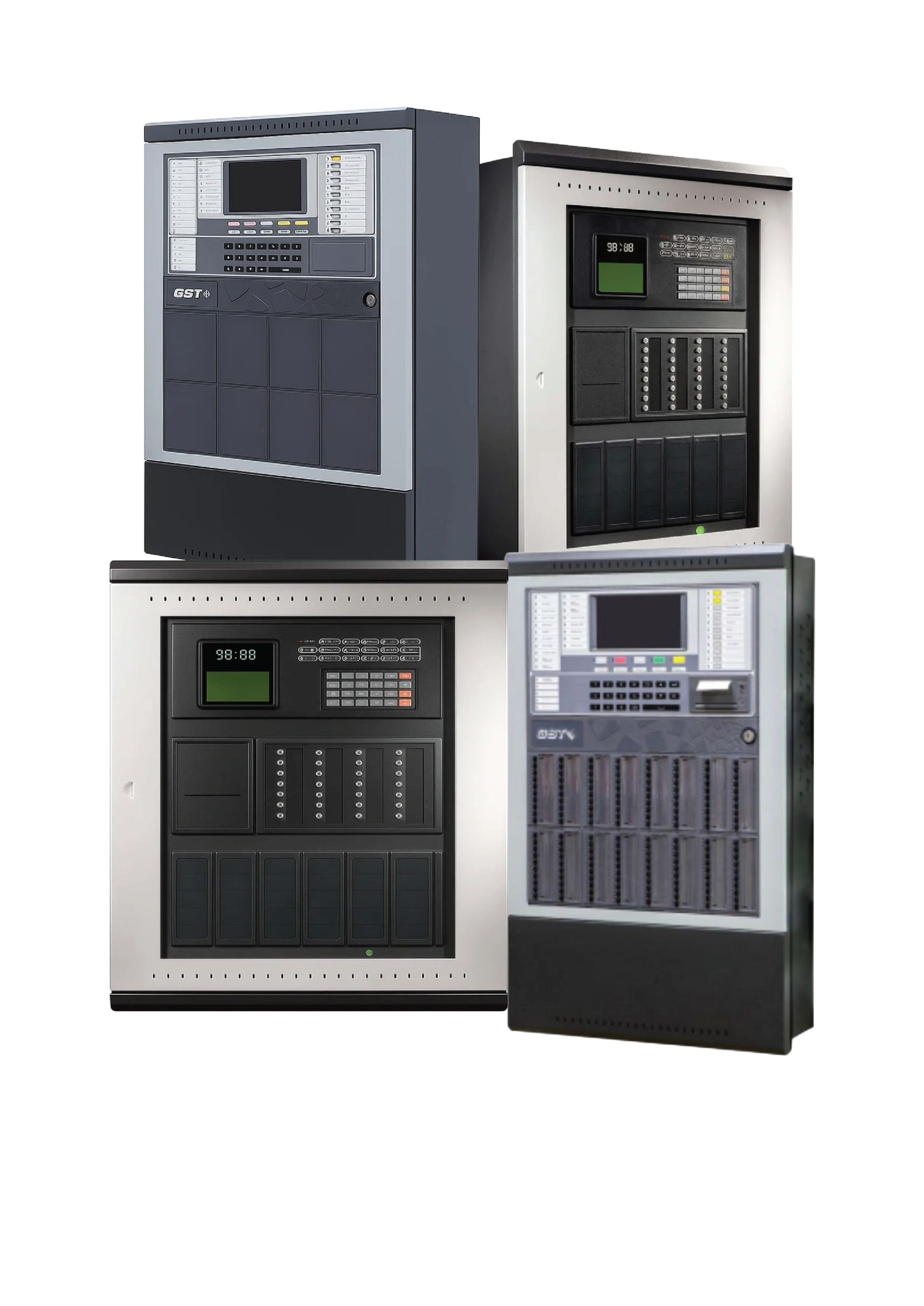

GST Addressable Fire Alarm Control Panels

GST Addressable Fire Alarm Control Panels provide intelligent fire detection and system management for commercial, industrial, and institutional buildings. With precise device addressing, advanced networking capabilities, and seamless integration with fire protection and building management systems, GST panels deliver reliable fire detection, faster emergency response, and simplified maintenance for enhanced life safety protection.









Feature IFP4M GST200N
Standard UL 864 / NFPA 72 EN54-2 / EN54-4
Loops 1-6 Loops 1-2 Loops
Devices per Loop 242 devices 235 devices (first loop), 242 on second loop
Maximum Devices 1,452 477 devices (2-loop version)
Display 7″ Color Touchscreen 8×18 character LCD + LEDs
Event History 100,000 Events Non-volatile memory (basic event retention)
Networking CAN, Fiber, TCP/IP, Ethernet diagnostics RS485 / CAN Network
BMS Integration Modbus, BACnet Modbus, TCP/IP
Redundant CPU Available Not standard
Built-in Printer Available Optional
Typical Zone Capacity Large-scale configurable zoning Up to 30 zones
