The SANJIANG A9030T is an intelligent addressable photoelectric smoke detector designed for use with SANJIANG addressable fire alarm systems. Utilizing advanced optical smoke sensing technology, the detector provides early warning of smoldering and developing fires while minimizing nuisance alarms through intelligent signal processing and drift compensation. It complies with EN54-7 standards and supports electronic addressing through the SANJIANG coding system.

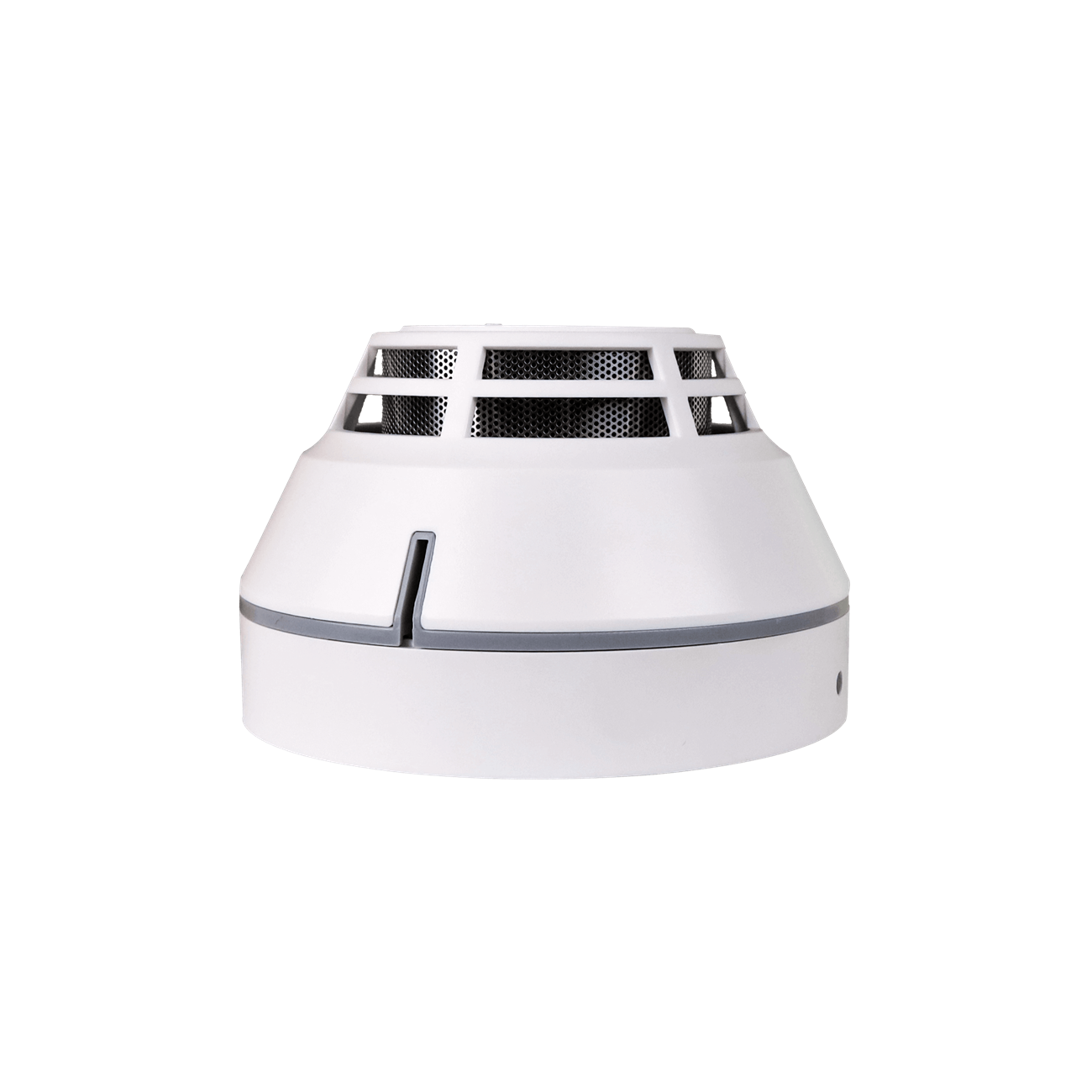

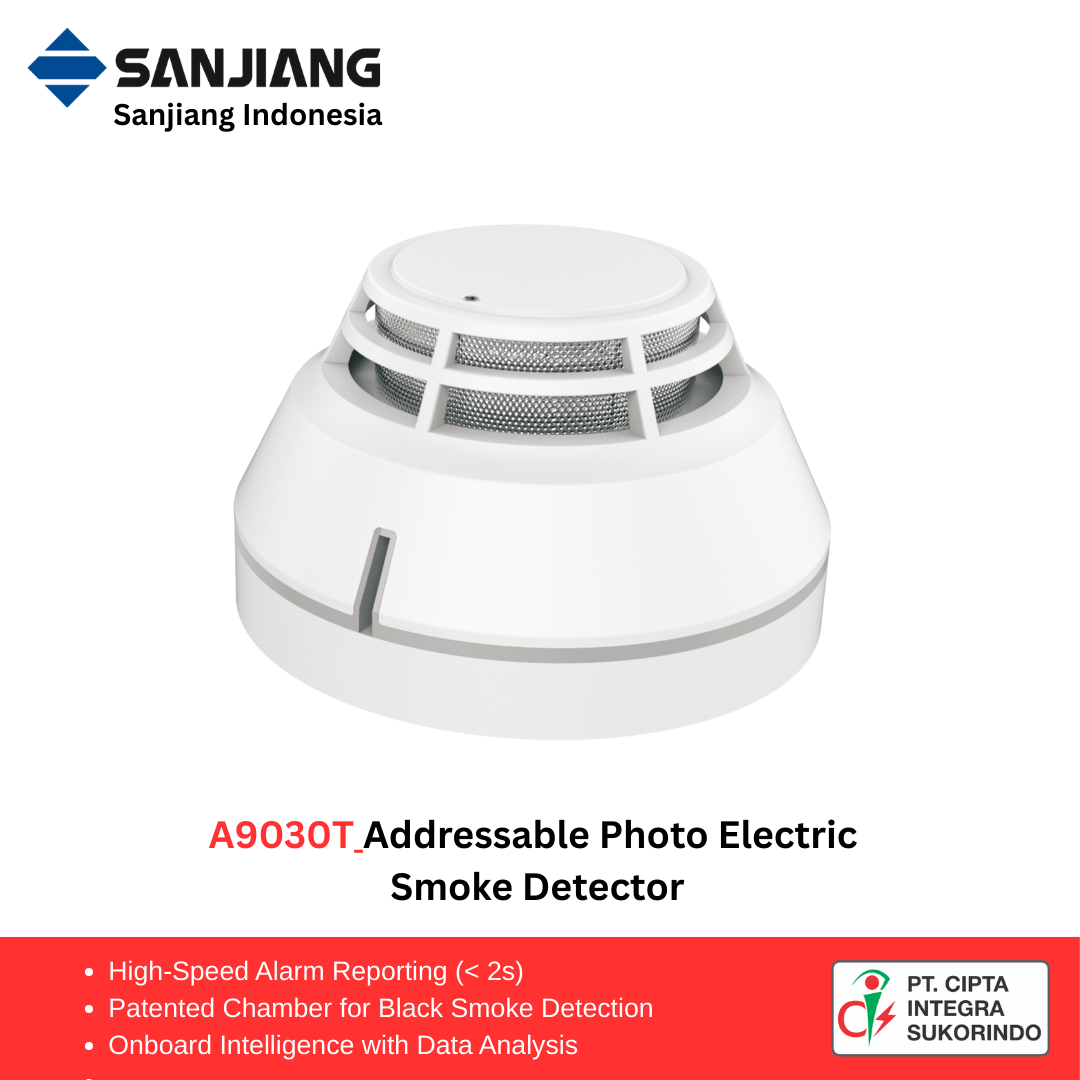

SANJIANG Smoke Detector (A9030T)
Typical Specifications
| Item | Specification |
|---|---|
| Model | A9030T |
| Device Type | Addressable Photoelectric Smoke Detector |
| Standard | EN54-7 |
| Operating Voltage | 24VDC (Pulse Modulation) |
| Standby Current | < 0.3mA |
| Alarm Current | < 1.5mA (without remote indicator) |
| Alarm Current | < 3.5mA (with remote indicator) |
| Address Range | 1 – 324 |
| Wiring Method | Non-polar 2-wire loop |
| Remote Indicator Output | Yes |
| LED Indication | Flashing (Normal), Steady (Alarm) |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | ≤95% RH (Non-condensing) |
| Dimensions | Ø100 × 58 mm |
| Weight | Approx. 128g |
| Compatible Panel | SEC3002 Addressable Fire Alarm Panel |
