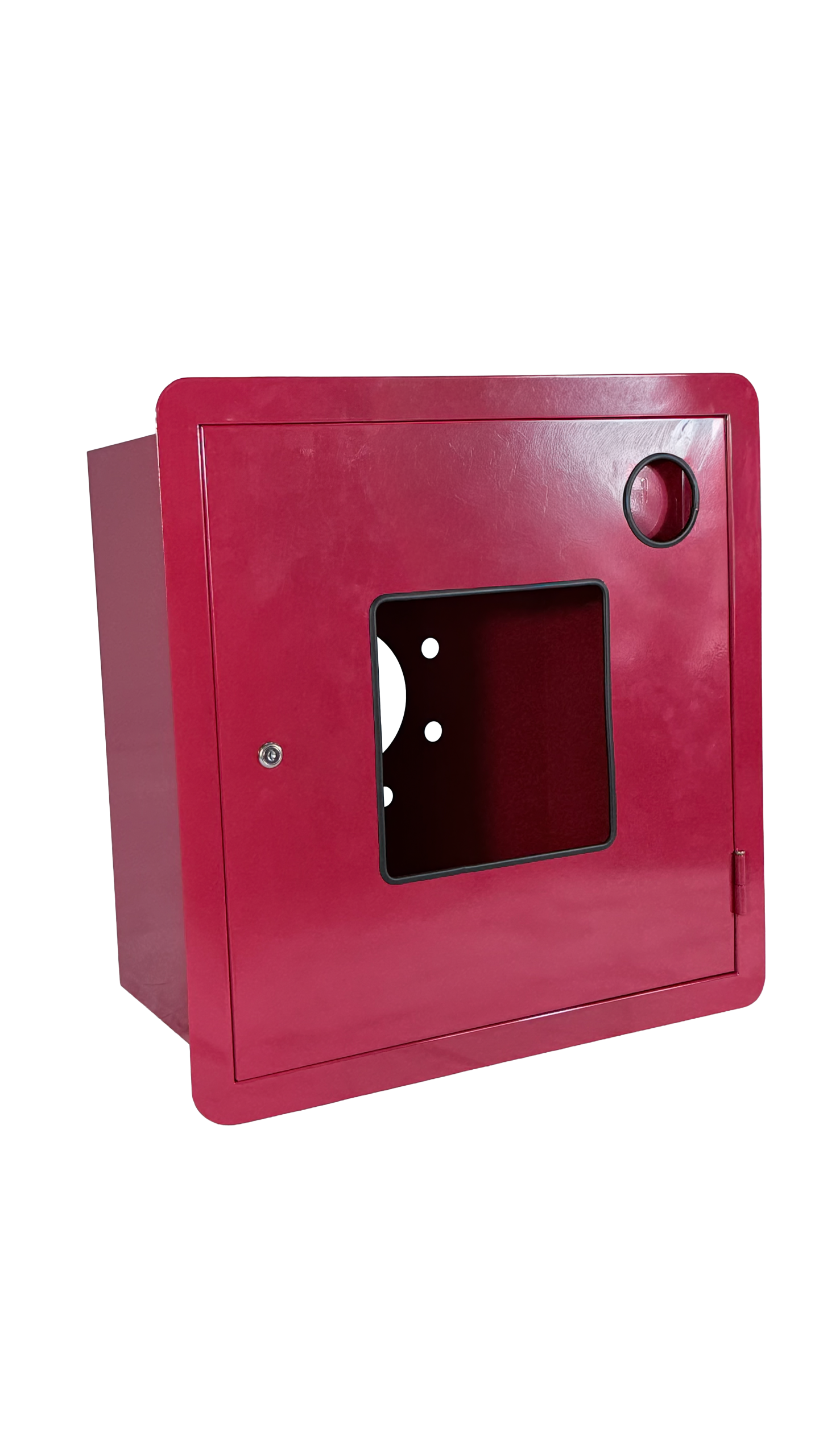

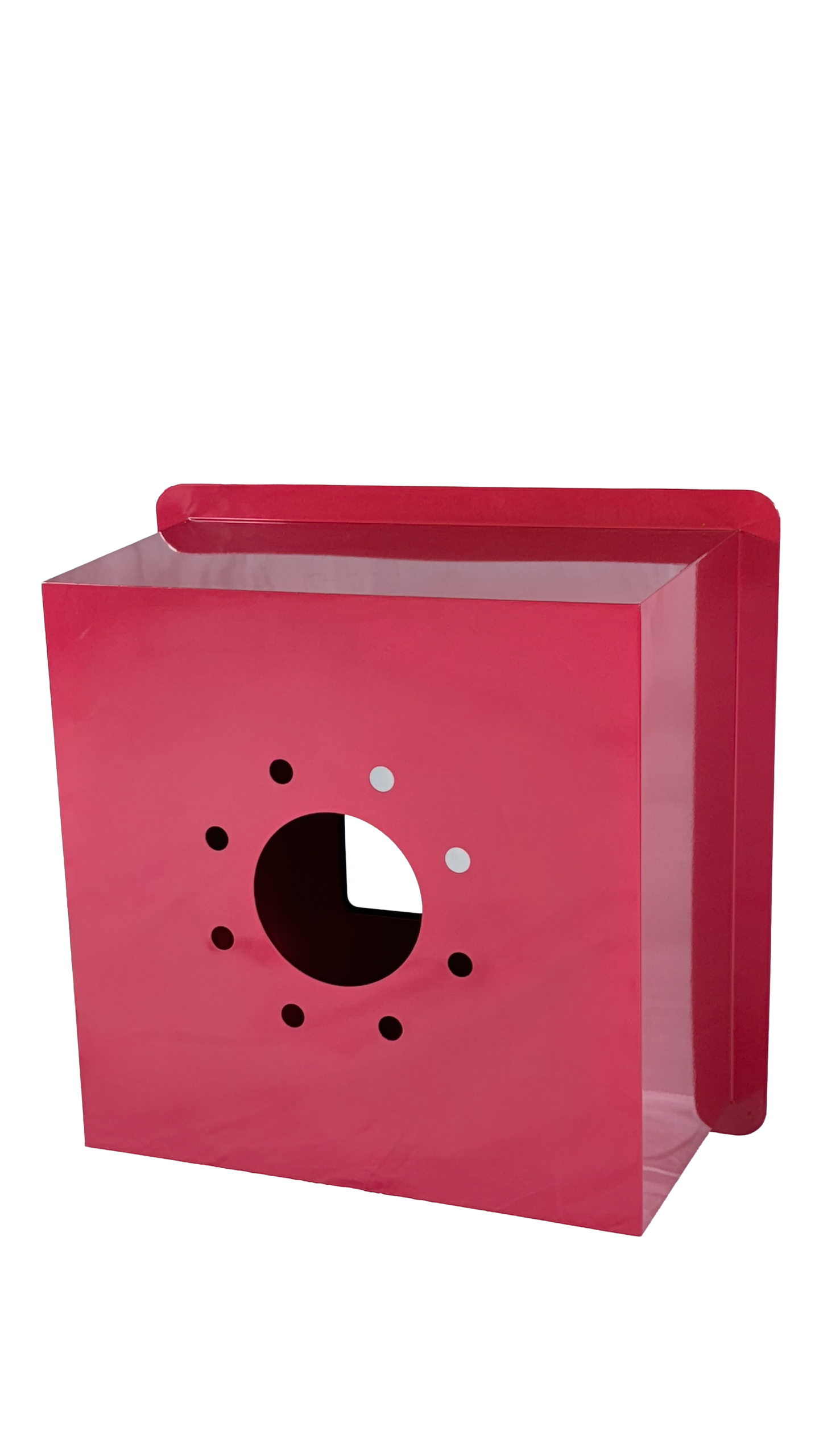

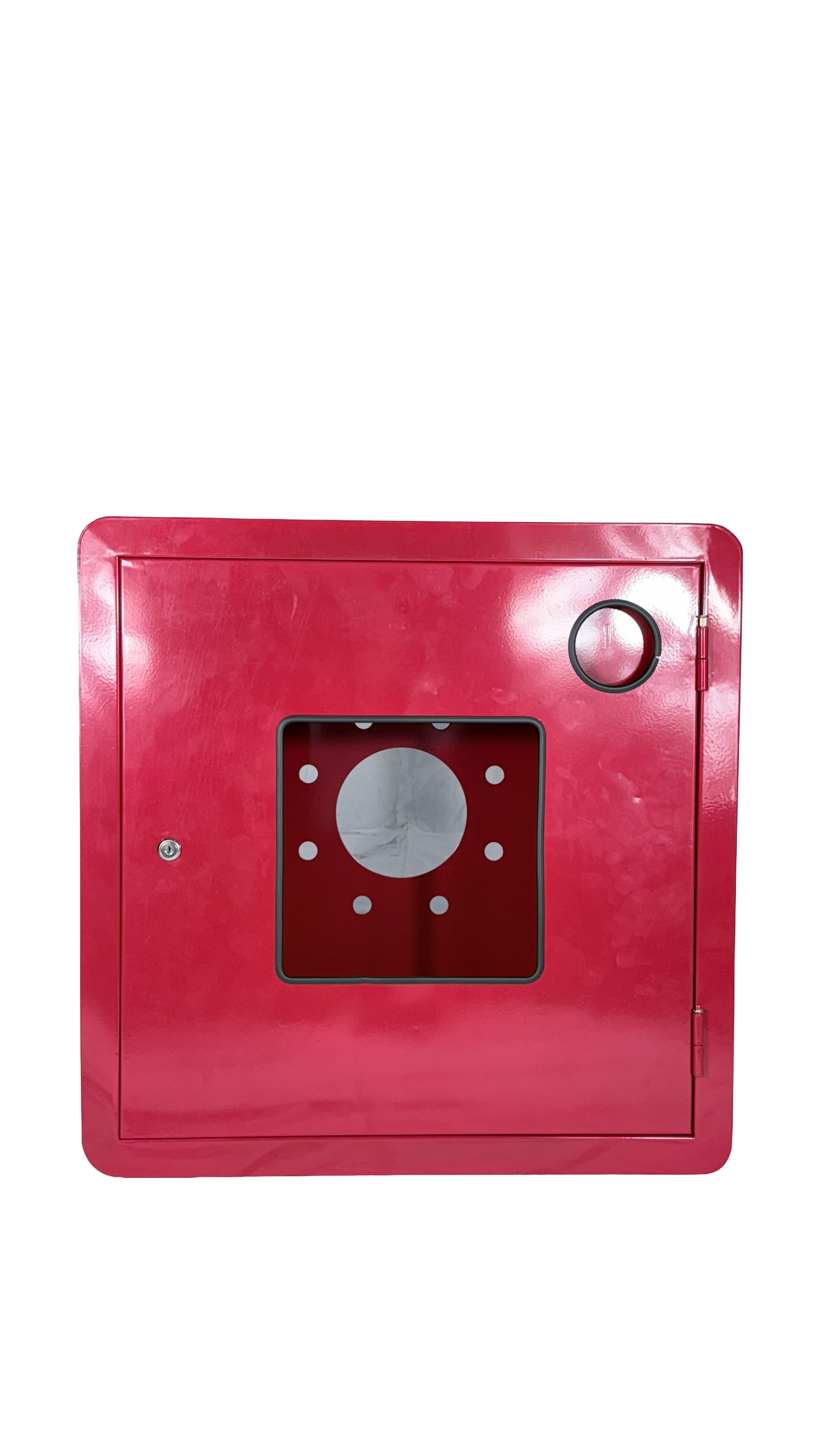

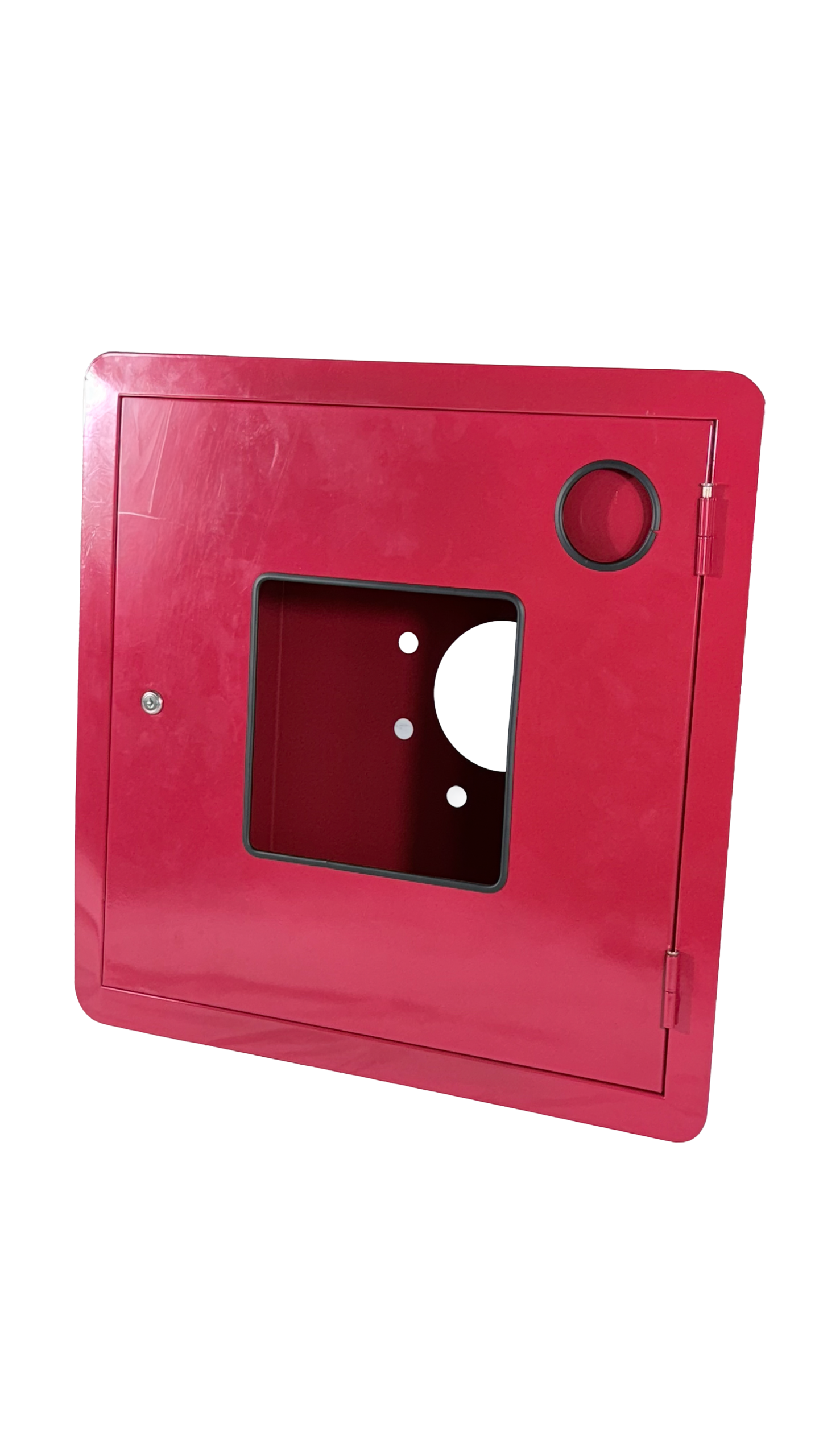

4-Way Breeching Inlet Cabinet

A 4-Way Breeching Inlet Cabinet is a protective enclosure that houses a 4-way breeching inlet, allowing firefighters to connect up to four hoses from a fire engine to supply water into a building’s firefighting system.

It is commonly installed on the external wall of buildings to protect the breeching inlet while ensuring it remains visible, secure, and easily accessible during emergencies.

Model4 Way Breeching Inlet
Part No.CAB-4W
Size (mm)595(W) x 300(D) x 565(H)
MaterialMild Steel
Thickness0.9mm
FinishingEpoxy Powder Red
Outlet(6″) Flange 150mm Table E
DesignBS 5041: Part 5
