The Apollo Elite VF1480 is an advanced analog addressable fire alarm control panel (FACP) designed for medium to large commercial, industrial, and institutional facilities. Utilizing the Apollo protocol, the panel supports intelligent fire detection, networked releasing functions, and advanced cause-and-effect programming for comprehensive life safety management. It is suitable for standalone installations or networked multi-building systems.

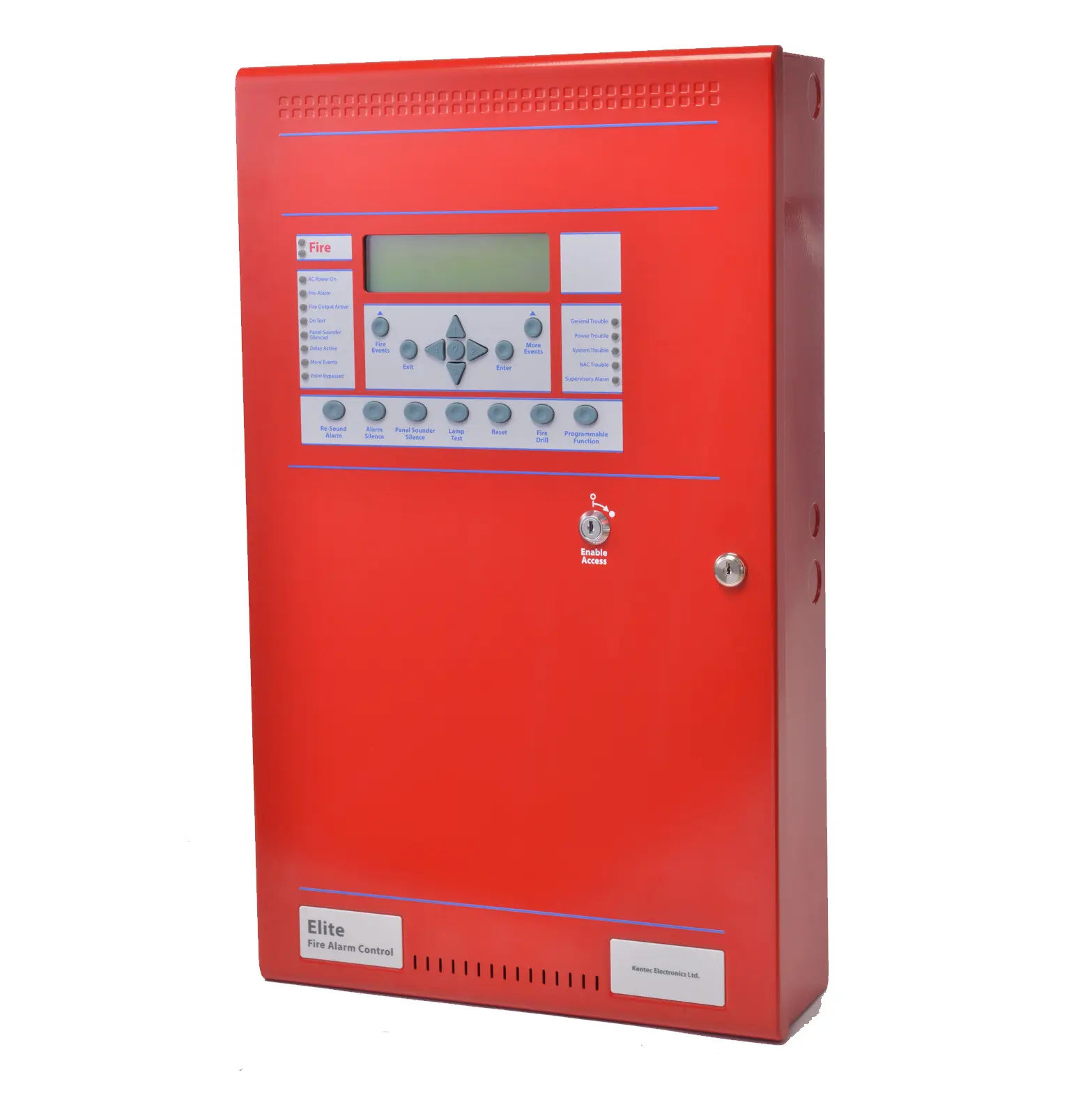

Apollo Elite VF1480
Typical Specifications
| Item | Specification |
|---|---|
| Model | VF1480 |
| System Type | Analog Addressable Fire Alarm Control Panel |
| Protocol | Apollo |
| SLC Loops | 2 Standard, Expandable to 4 |
| Devices per Loop | 126 Sensors & Modules |
| Maximum Points | 500 Primary Points |
| Maximum Addresses | 800 Addresses with Sub-Points |
| Display | 8 x 40 Character LCD |
| NAC Outputs | 4 x 1.6A @ 24VDC Class B |
| Relay Outputs | 5 Form-C Relays (1A @ 30VDC) |
| Auxiliary Outputs | 3 x 500mA @ 24VDC |
| Power Supply | 5.25A Regulated Integrated PSU |
| Charger Capacity | 1.25A Maximum |
| Output Voltage | 24VDC @ 4A |
| Network Capacity | Up to 64 Nodes |
| Power Input | 120VAC 60Hz |
| Standard | UL 864 9th Edition Listed |
