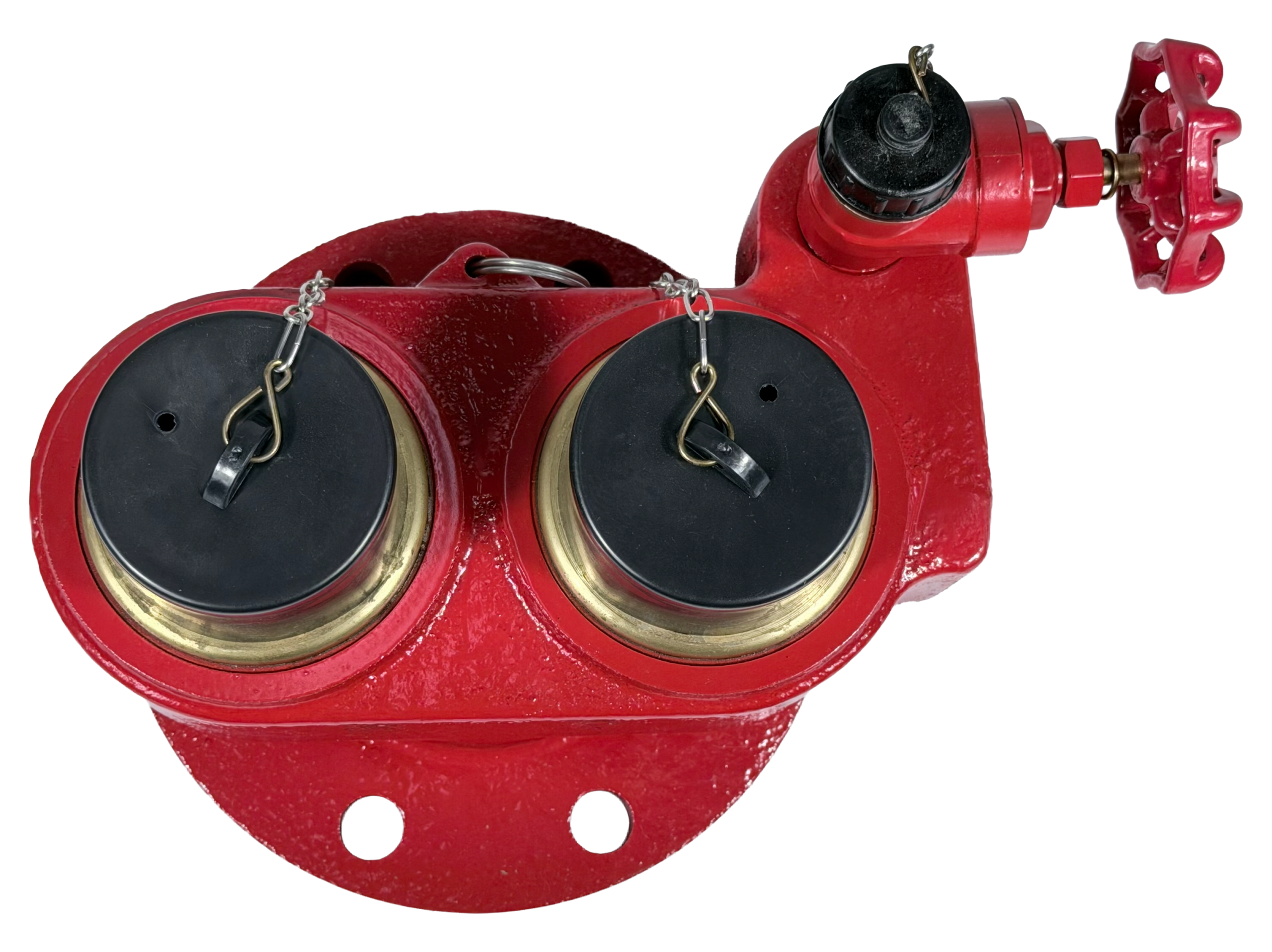

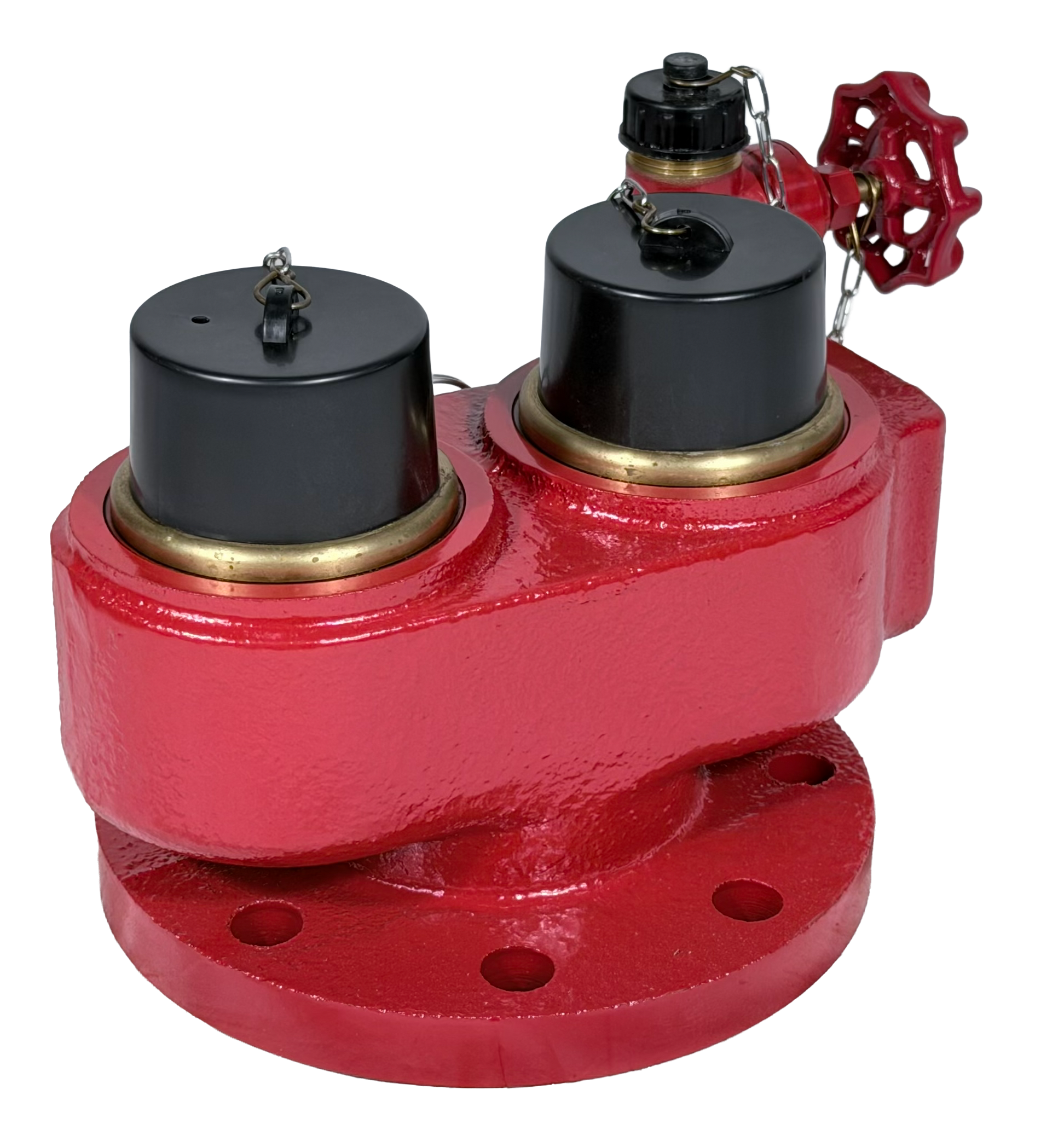

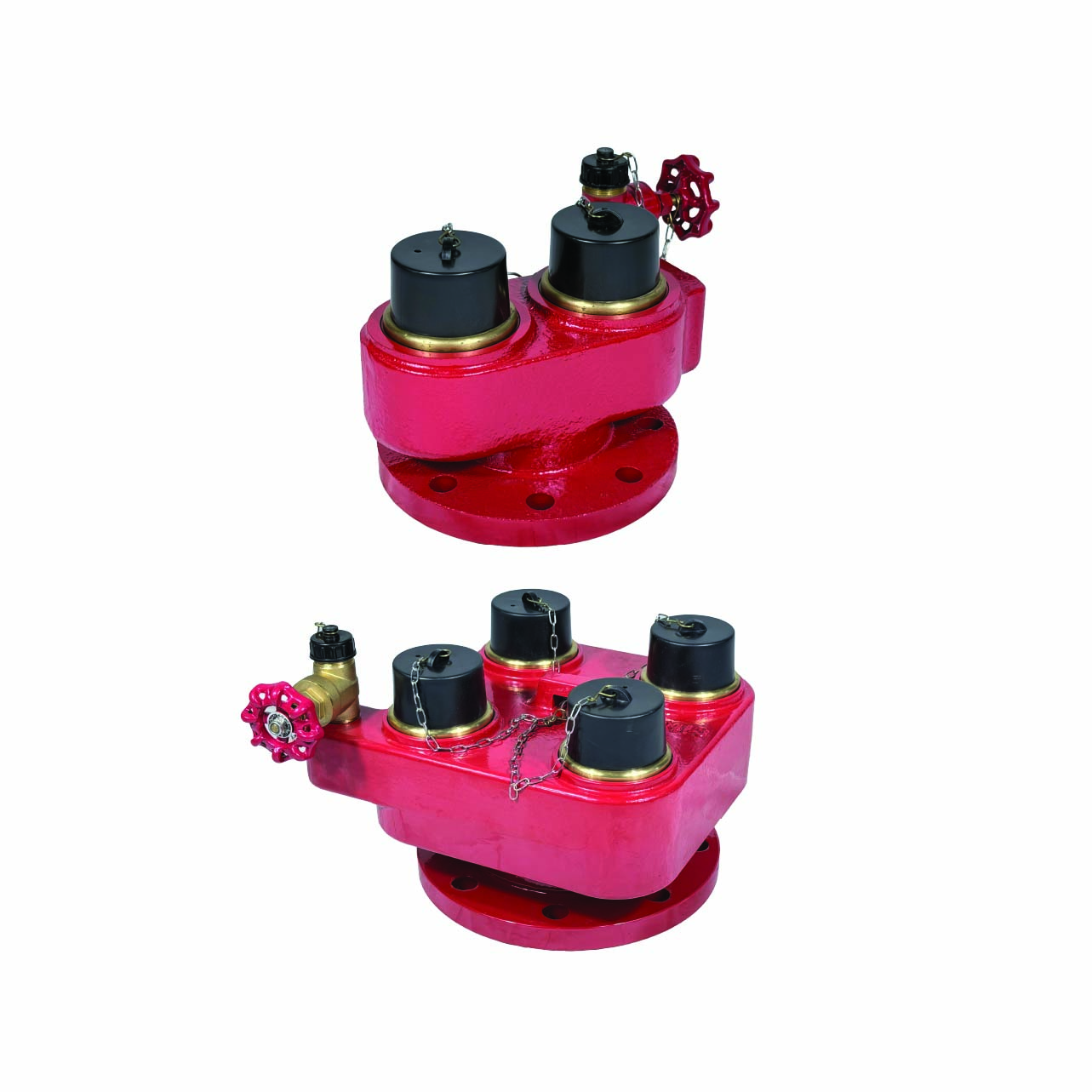

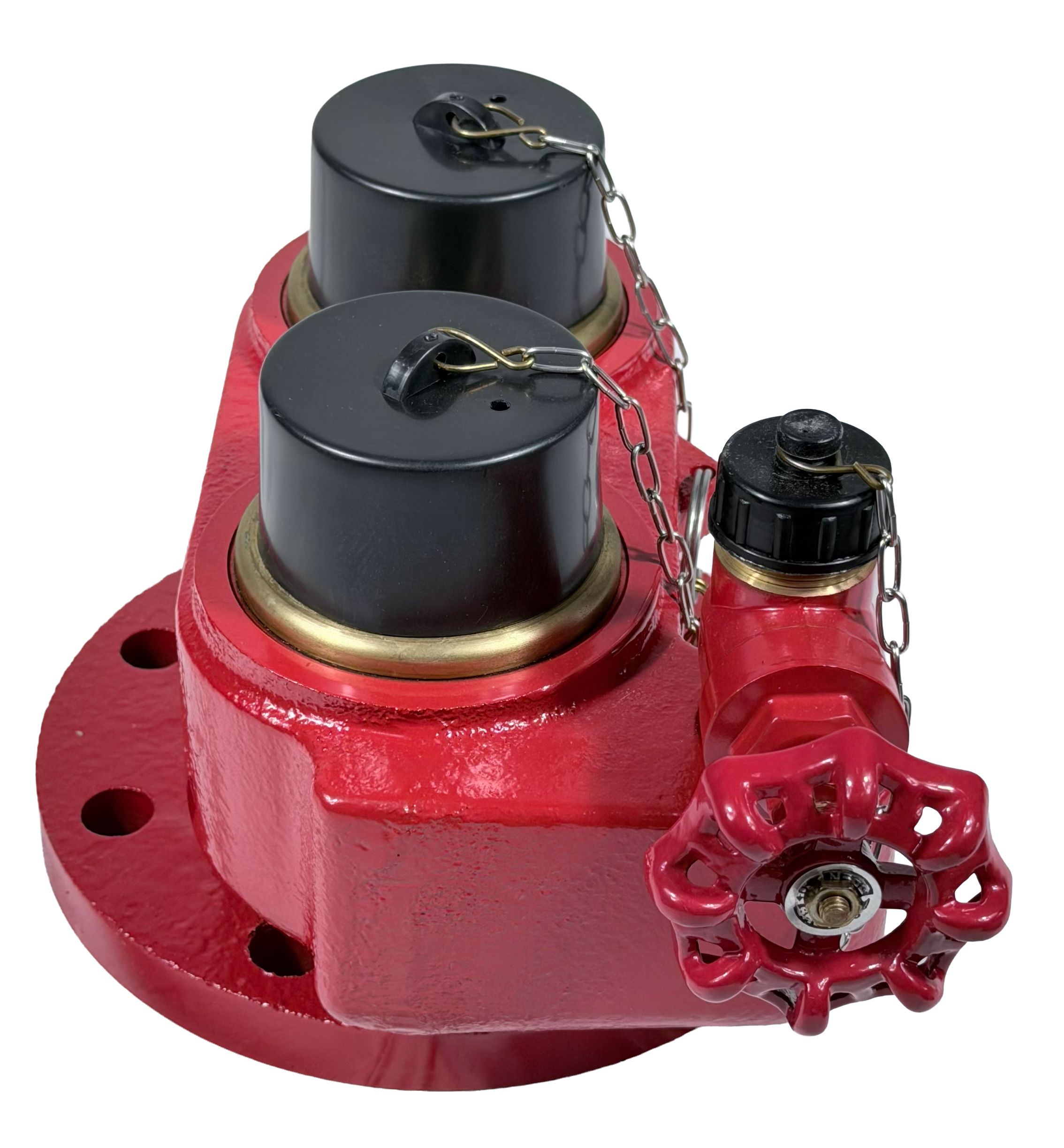

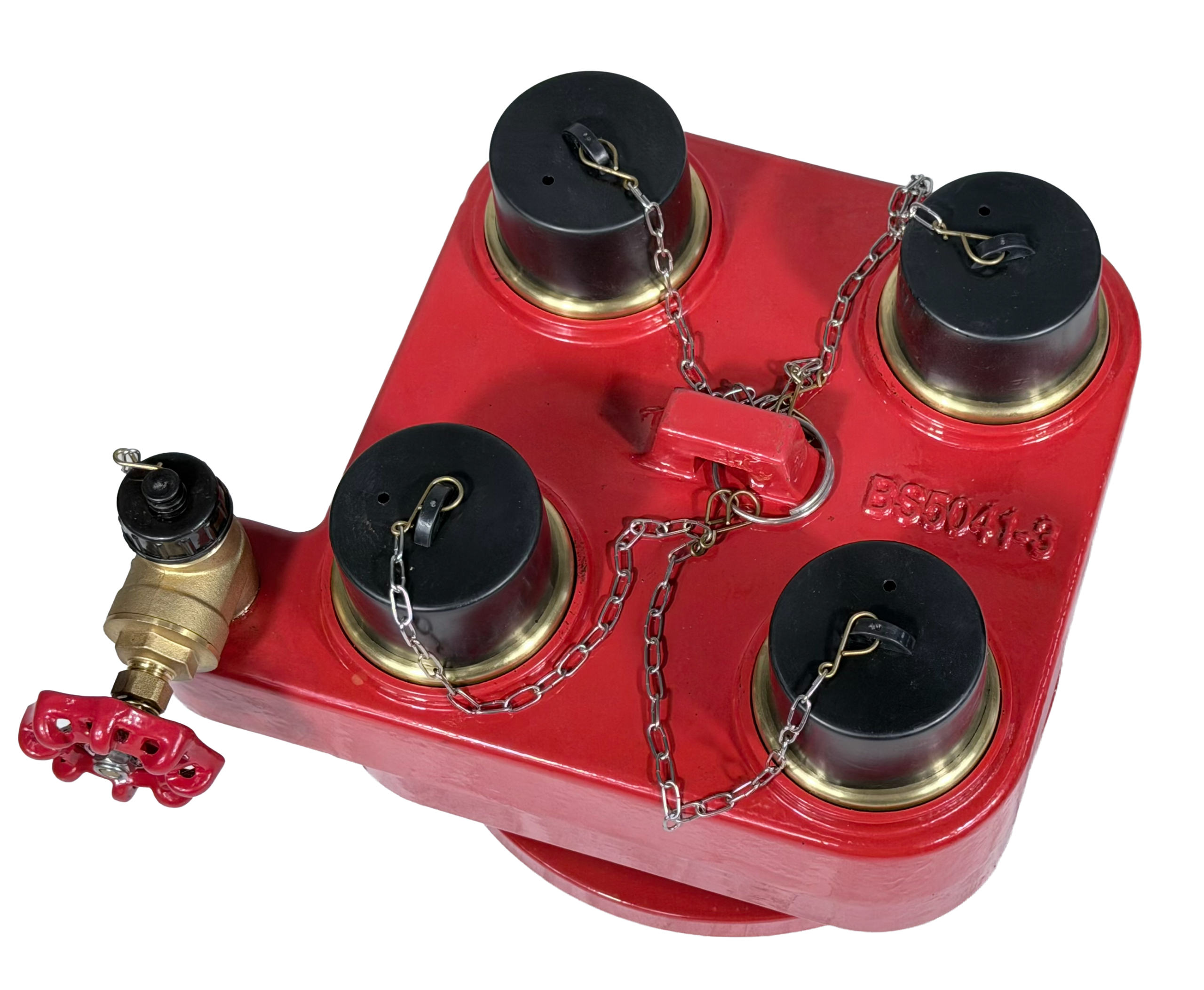

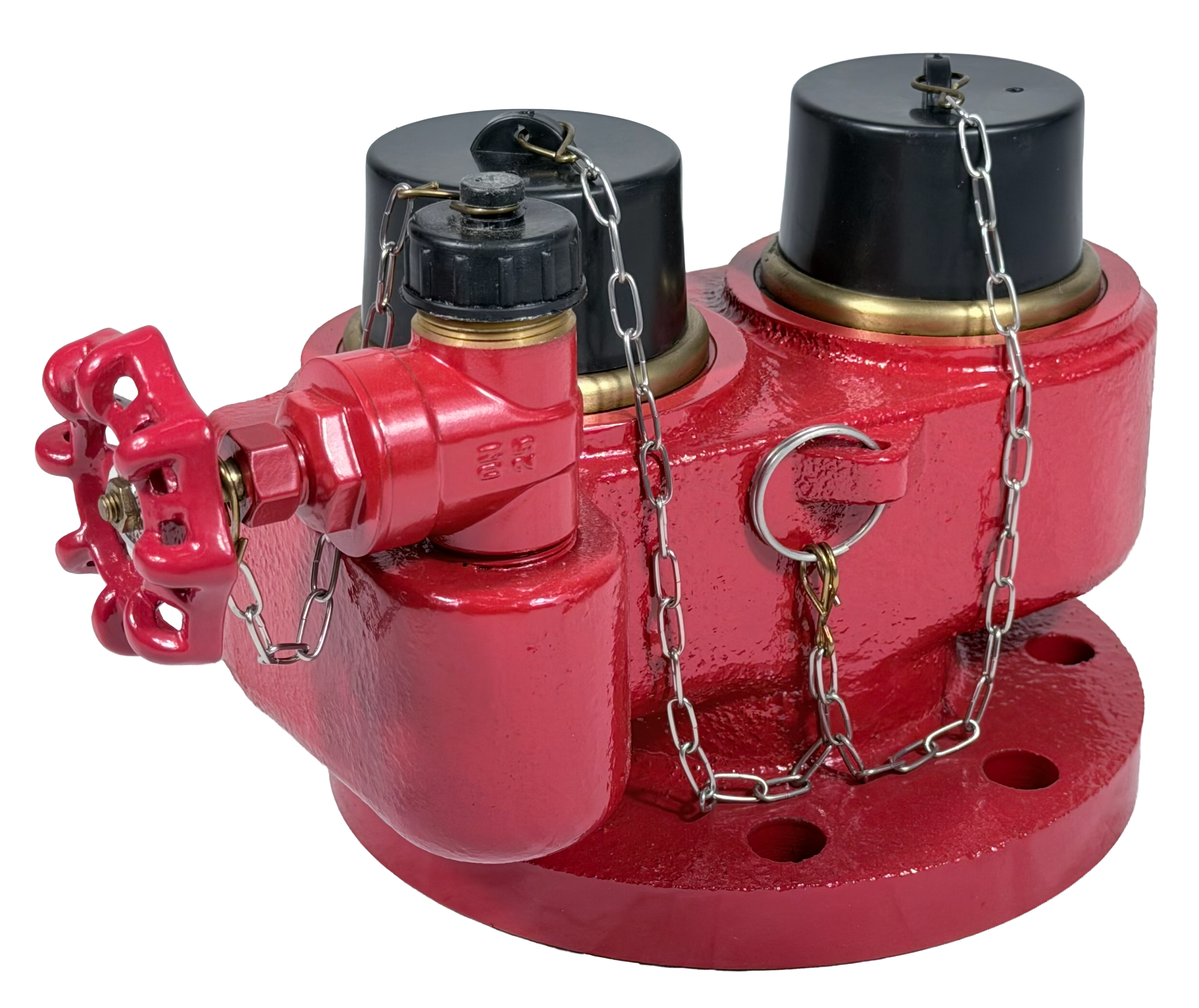

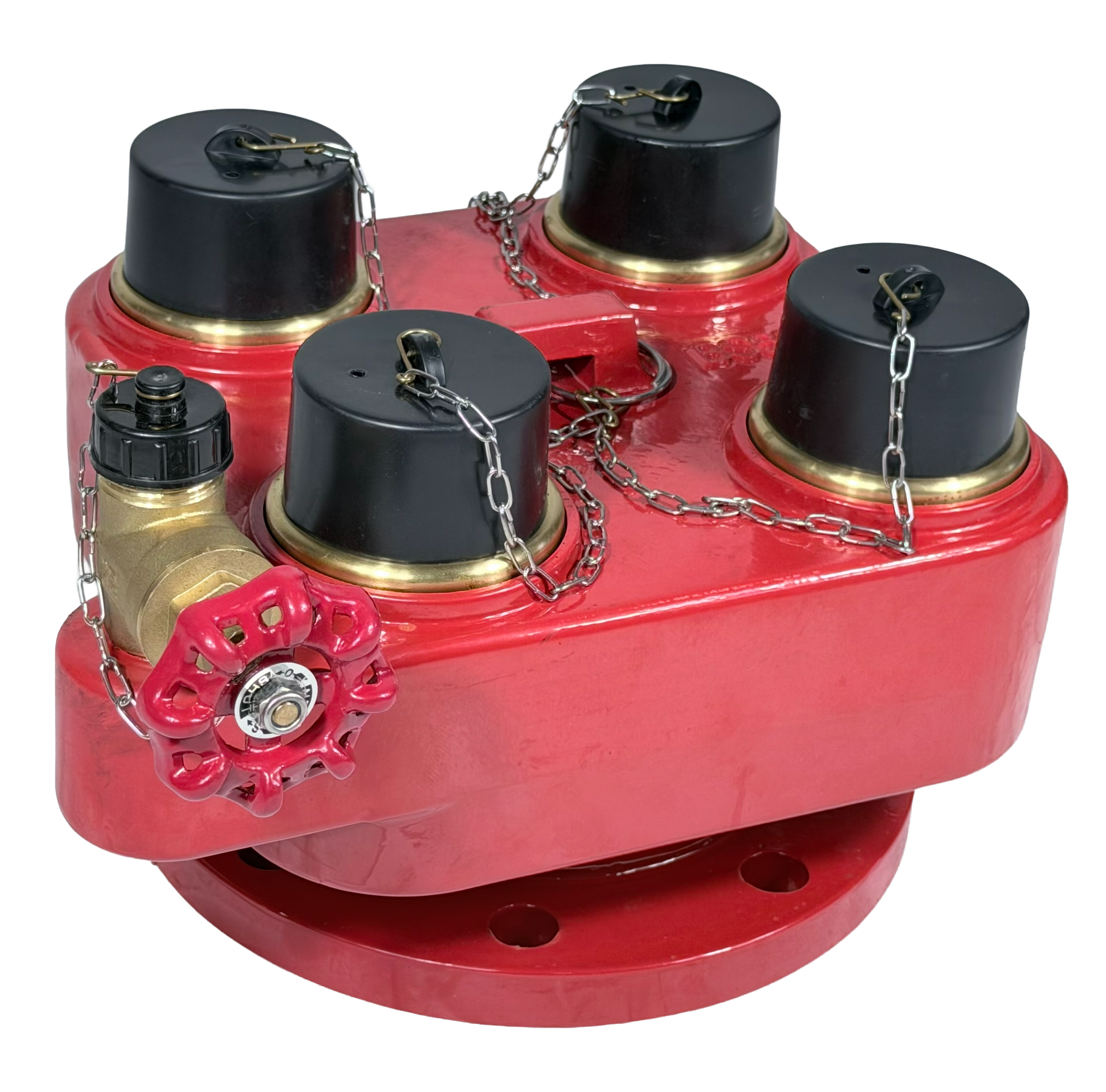

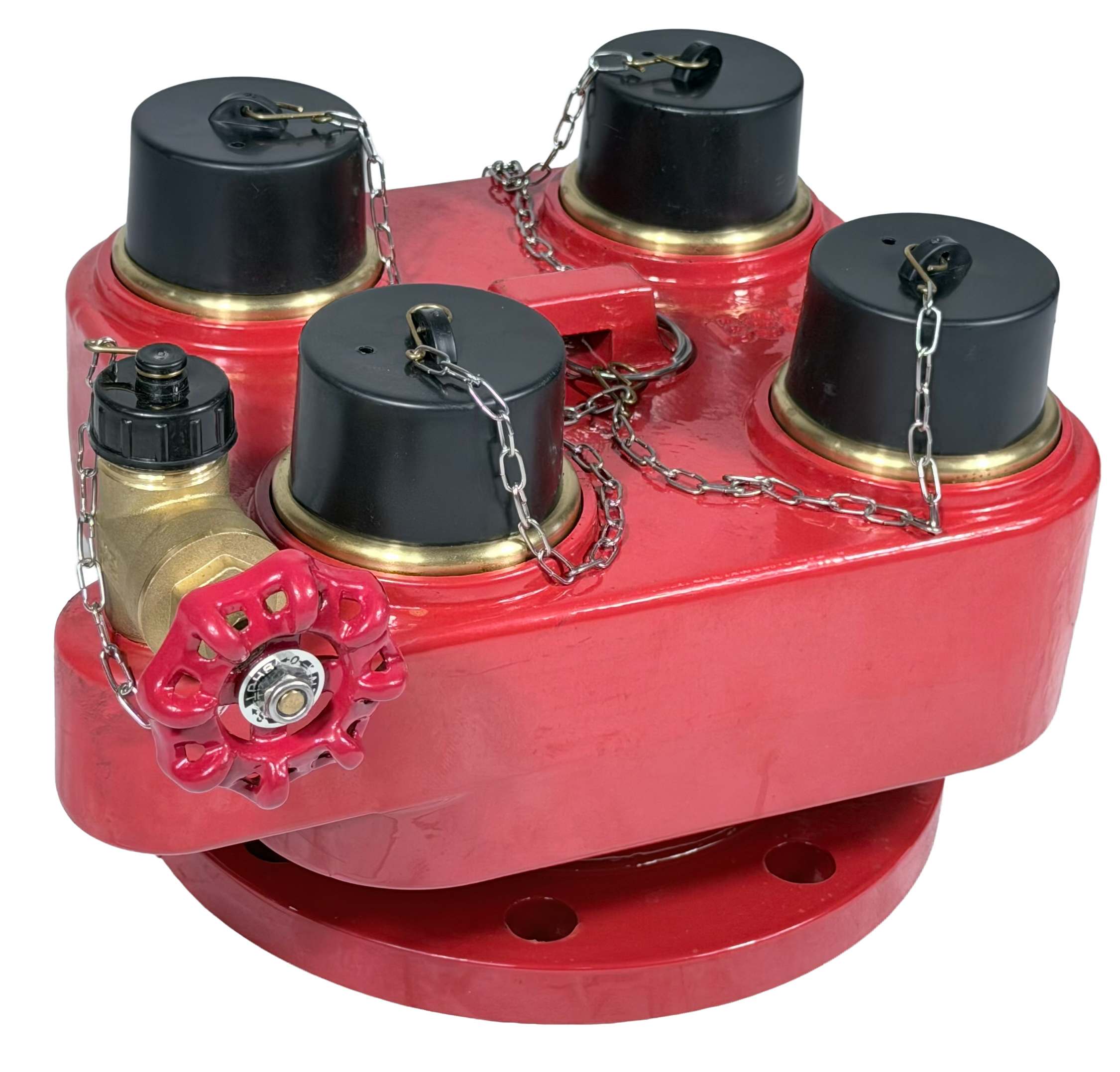

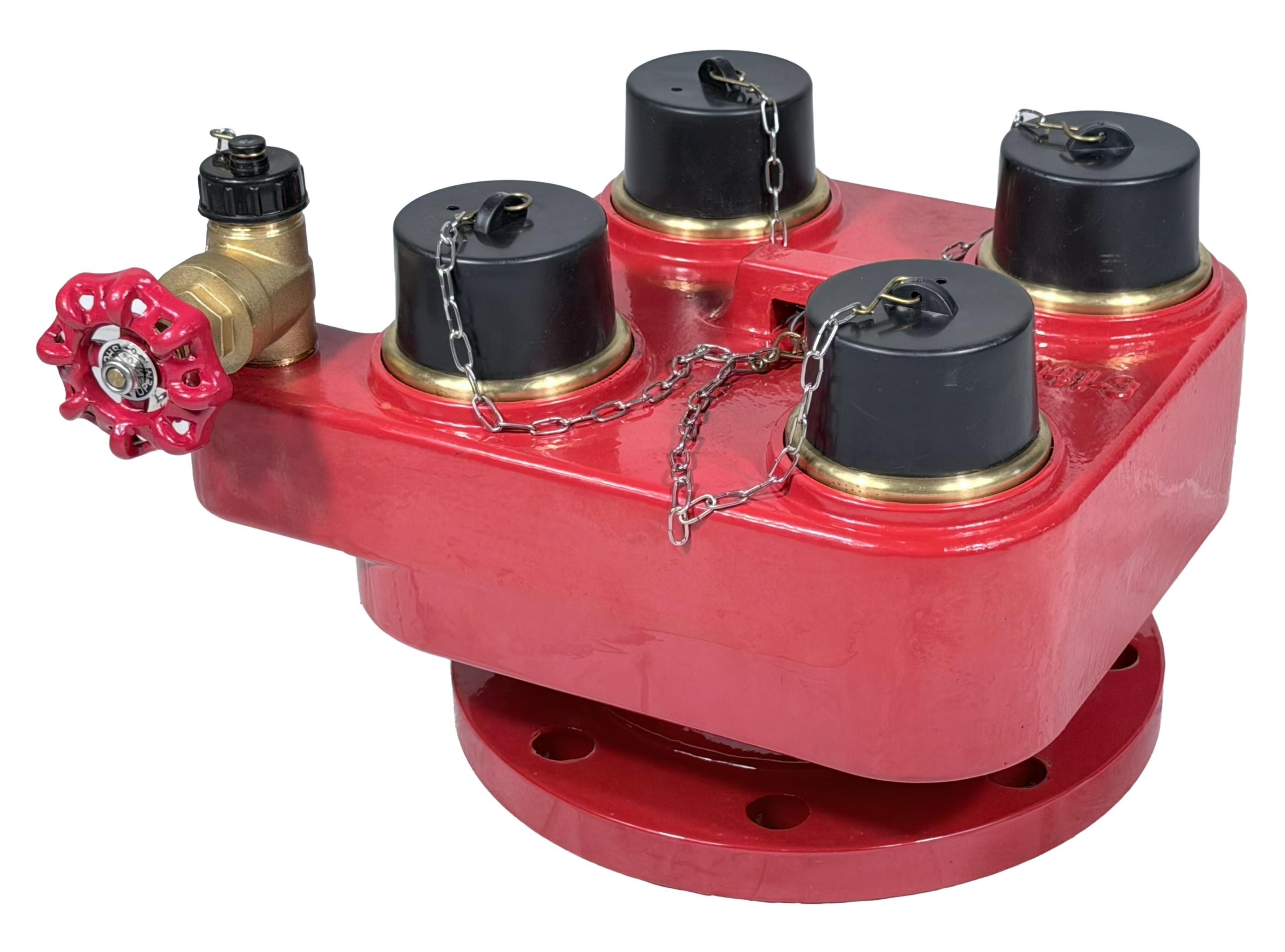

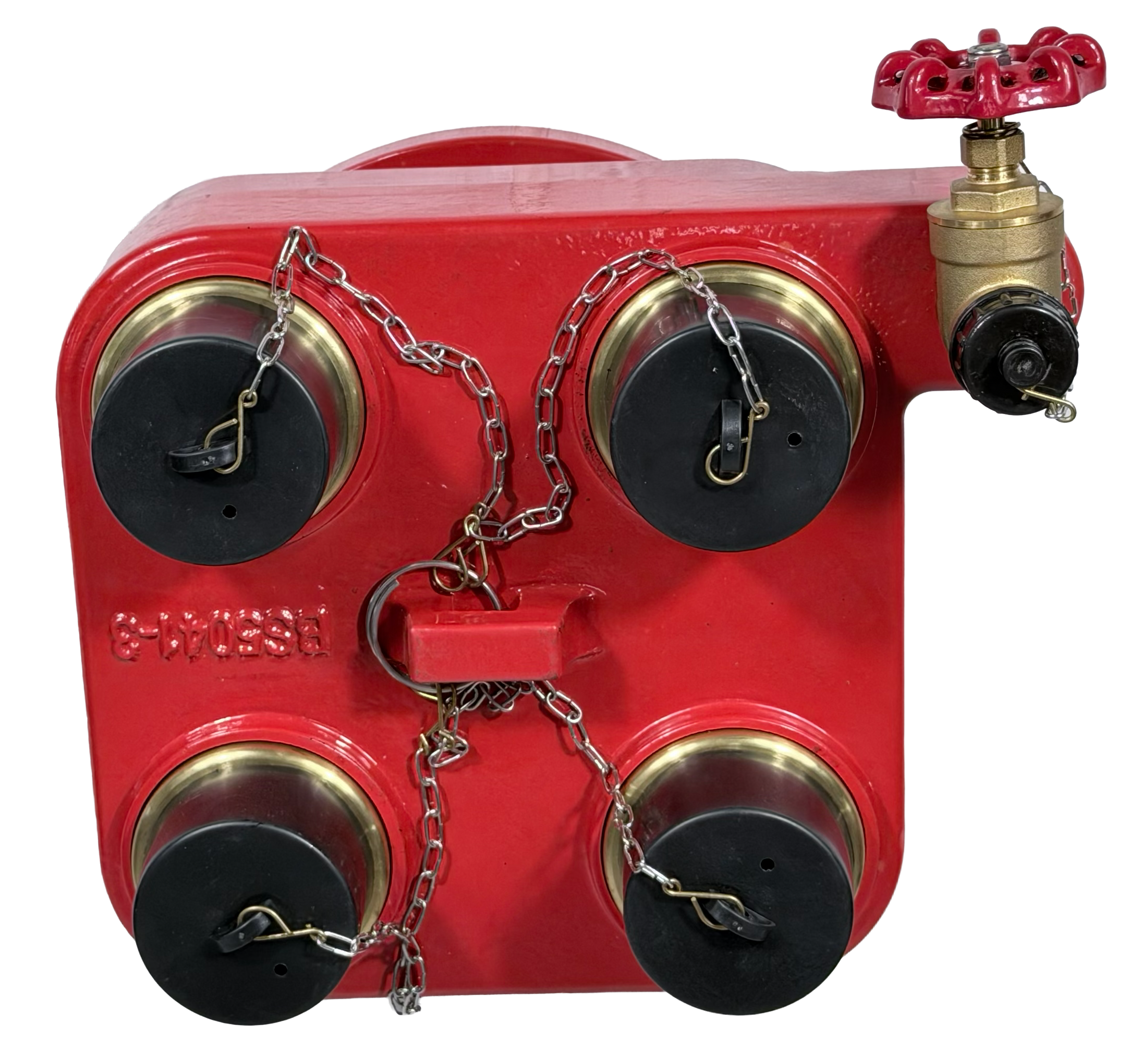

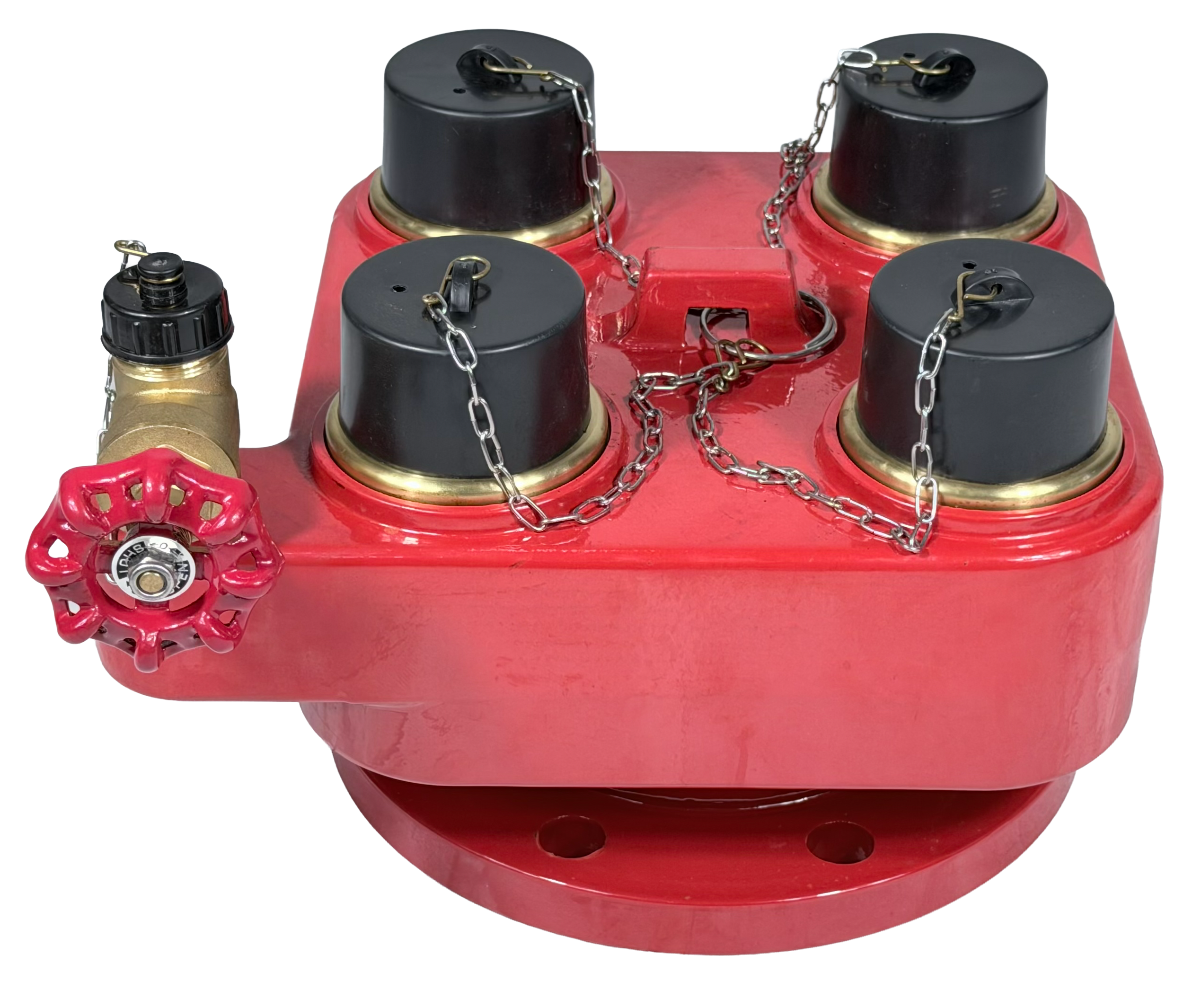

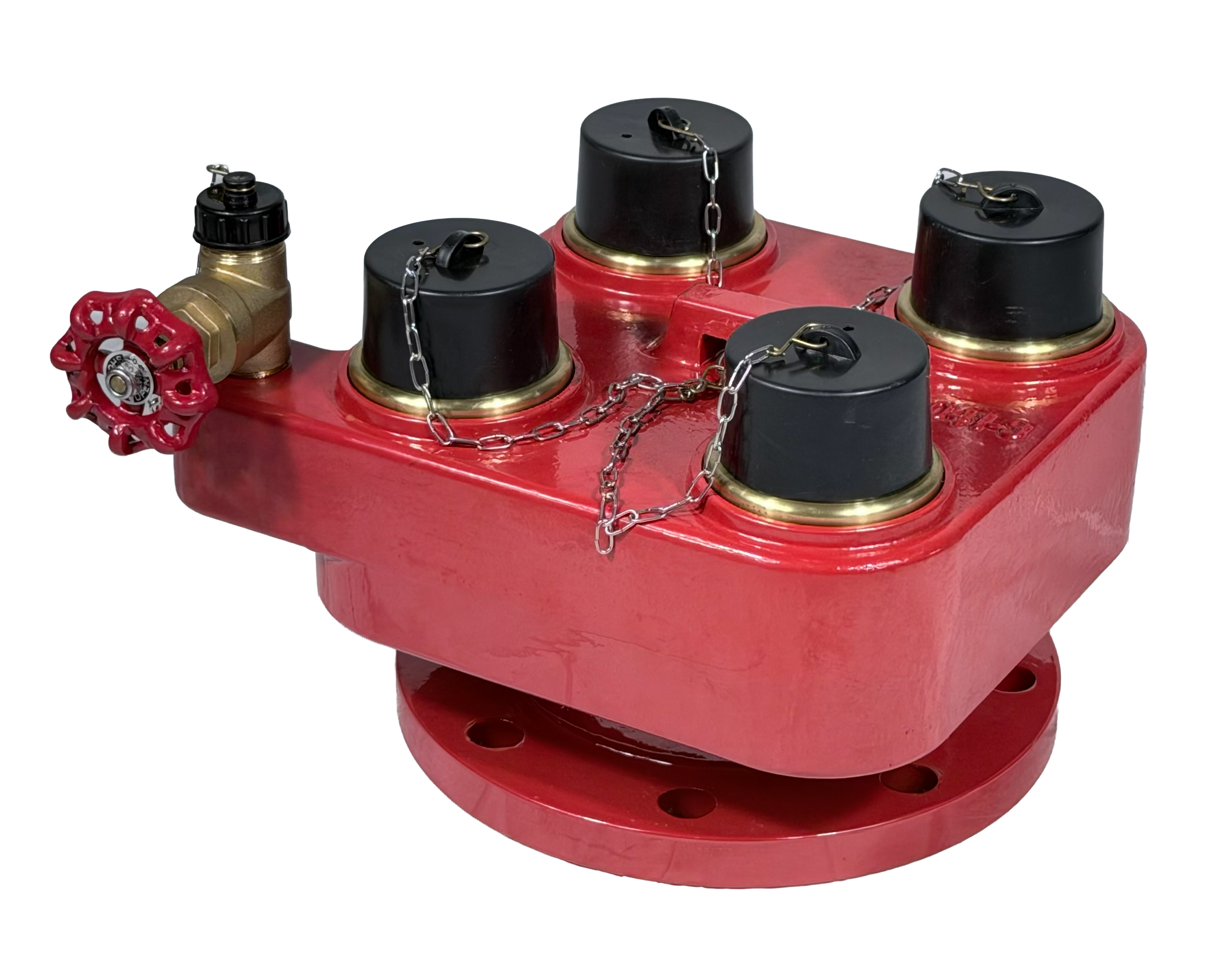

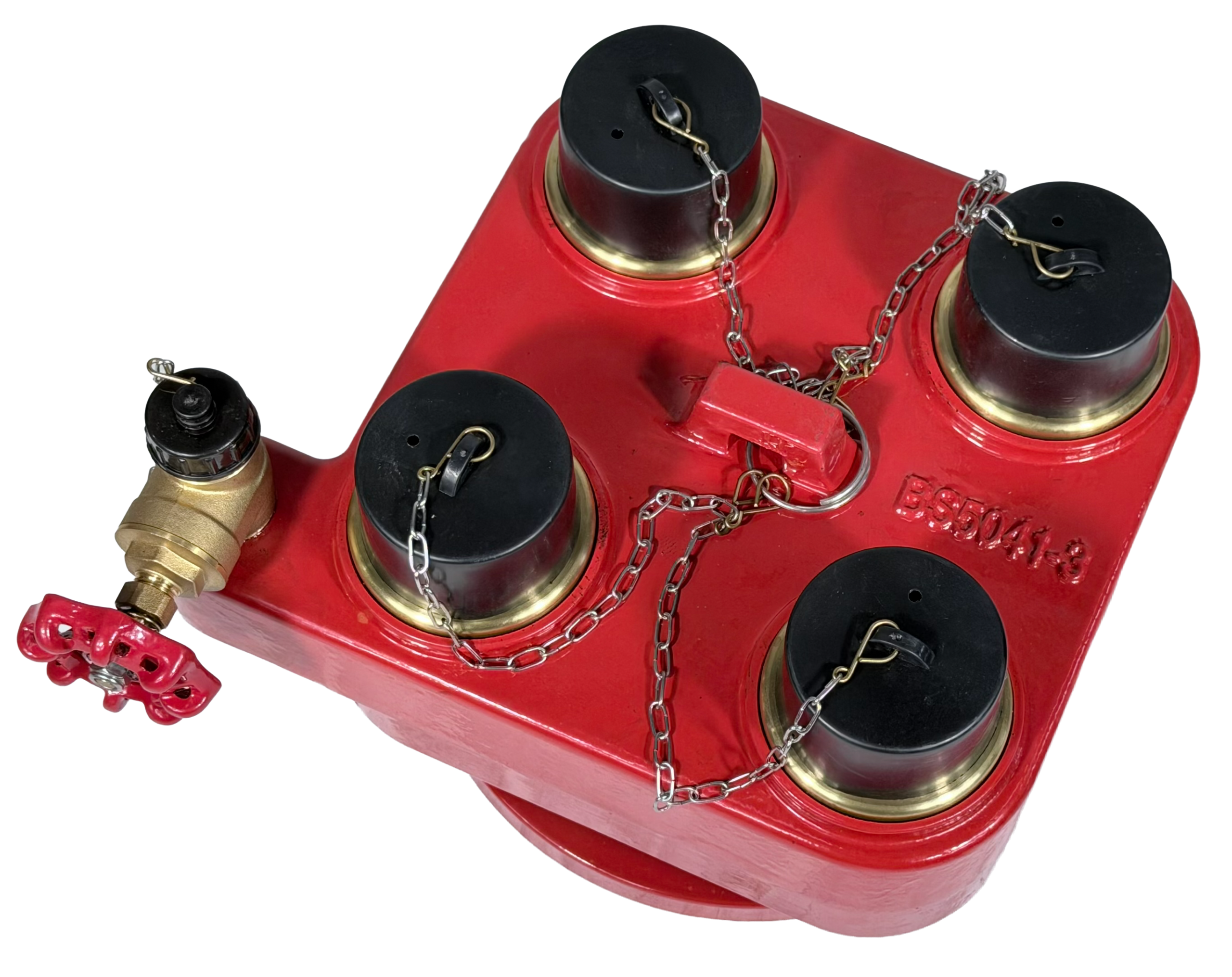

A Breeching Inlet is a fire protection connection installed on the outside of a building that allows firefighters to pump water from a fire engine into the building’s firefighting system during an emergency.
It is commonly used for wet riser systems, dry riser systems, and sprinkler systems in large or high-rise buildings.
| Model | 2 Way | 4 Way |
|---|---|---|
| Part No. | DRU-2W | WRU-4W |
| Dimension (mm) | 316(L) x 219(W) x 235(H) | 382(L) x 280(W) x 270(H) |
| Outlet Size | Flange (4″) 100mm Table E | Flange (6″) 150mm Table E |
| Inlet Size | BS 336 Male Instantaneous | BS 336 Male Instantaneous |
| Working Pressure | 10 bar | 10 bar |
| Test Pressure | 20 bar | 20 bar |
| Material | Cast Iron (Body) Copper Alloy (Male Instantaneous) | Cast Iron (Body) Copper Alloy (Male Instantaneous) |
| Finishing | Red | Red |
