A Horizontal Sidewall Sprinkler is a sprinkler head designed to be installed on a wall, usually just below the ceiling. It discharges water in a half-parabolic pattern away from the wall, making it ideal for areas where ceiling-mounted sprinklers are impractical.

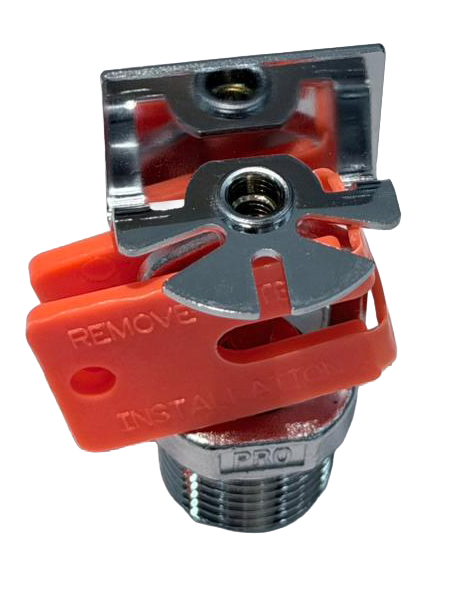

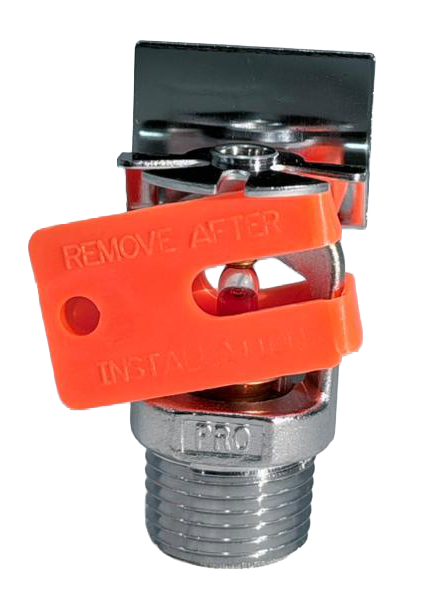

Horizontal Sidewall Sprinkler
Typical Specifications
| Item | Details |
|---|---|
| Type | Horizontal Sidewall Sprinkler |
| Installation | Horizontal, mounted on wall |
| K-Factor | K5.6 (80 metric) |
| Connection Size | 1/2″ NPT / BSPT |
| Response Type | Standard Response (SR) or Quick Response (QR) |
| Temperature Ratings | 57°C, 68°C, 79°C, 93°C |
| Maximum Working Pressure | 175 psi (12 bar) |
| Finish | Brass, Chrome, White Polyester |
| Approval | UL Listed / FM Approved |
