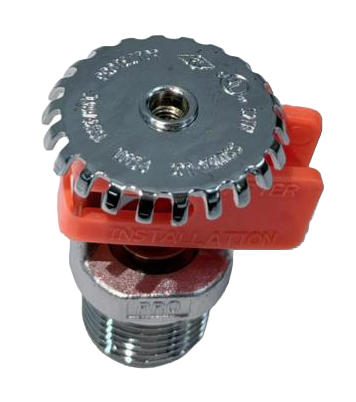

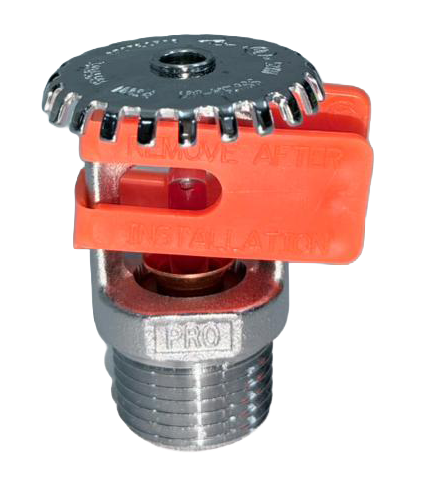

An Upright Sprinkler is a fire sprinkler head installed above the branch pipe, with the deflector positioned on top of the sprinkler. It is commonly used in areas with exposed piping, such as warehouses, factories, plant rooms, and industrial facilities.
Upright Sprinkler
Typical Specifications
| Item | Details |
|---|---|
| Type | Upright Sprinkler |
| Installation | Above Branch Pipe |
| K-Factor | K5.6, K8.0, K11.2, K14.0 |
| Connection Size | 1/2″, 3/4″, or 1″ NPT / BSPT |
| Response Type | Standard Response (SR) or Quick Response (QR) |
| Temperature Ratings | 57°C, 68°C, 79°C, 93°C, 141°C, 182°C |
| Working Pressure | Up to 175 psi (12 bar) |
| Finish | Brass, Chrome, White Polyester, Black |
| Approval | UL Listed / FM Approved |
