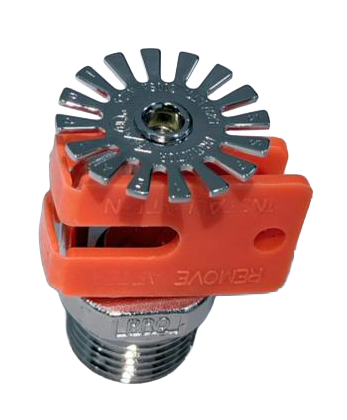

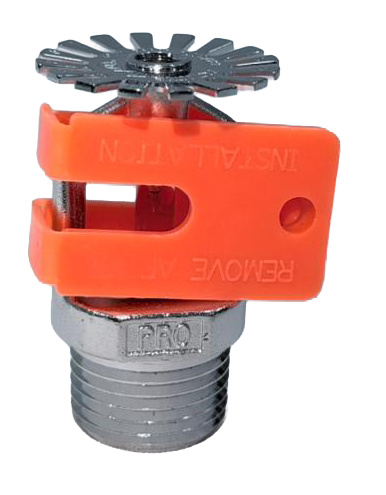

A Pendent Sprinkler is the most commonly used fire sprinkler head in wet pipe sprinkler systems. It is installed on the underside of sprinkler piping and hangs downward from the ceiling, discharging water in a circular pattern below the sprinkler.
Pendent Sprinkler
Typical Specifications
| Item | Details |
|---|---|
| Type | Pendent Sprinkler |
| Installation | Ceiling Mounted |
| K-Factor | K5.6 (80 metric) |
| Connection Size | 1/2″ or 3/4″ NPT / BSPT |
| Response Type | Standard Response (SR) or Quick Response (QR) |
| Temperature Ratings | 57°C, 68°C, 79°C, 93°C, 141°C |
| Working Pressure | Up to 175 psi (12 bar) |
| Finish | Brass, Chrome, White Polyester |
| Approval | UL Listed / FM Approved |
